GEPRC Mark5D O3 DeadCat Frame Pro Edition

GEPRC Mark5D O3 DeadCat Frame Pro Edition

Regular price £56.00 GBP
Regular price Sale price £56.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Specifications

GEP-MK5D O3 Frame

  • Wheelbase: 230mm

  • Top plate: 2.5mm

  • Bottom plate: 2.5mm

  • Arm plate: 5mm

  • FC mounting holes: 30.5mm x 30.5mm

  • Camera installation space: 20mm

  • Suitable propeller size: 5″propeller

  • Dimension: 208mm x 193mm x 42mm

  • Standard Version Weight: 168.0g

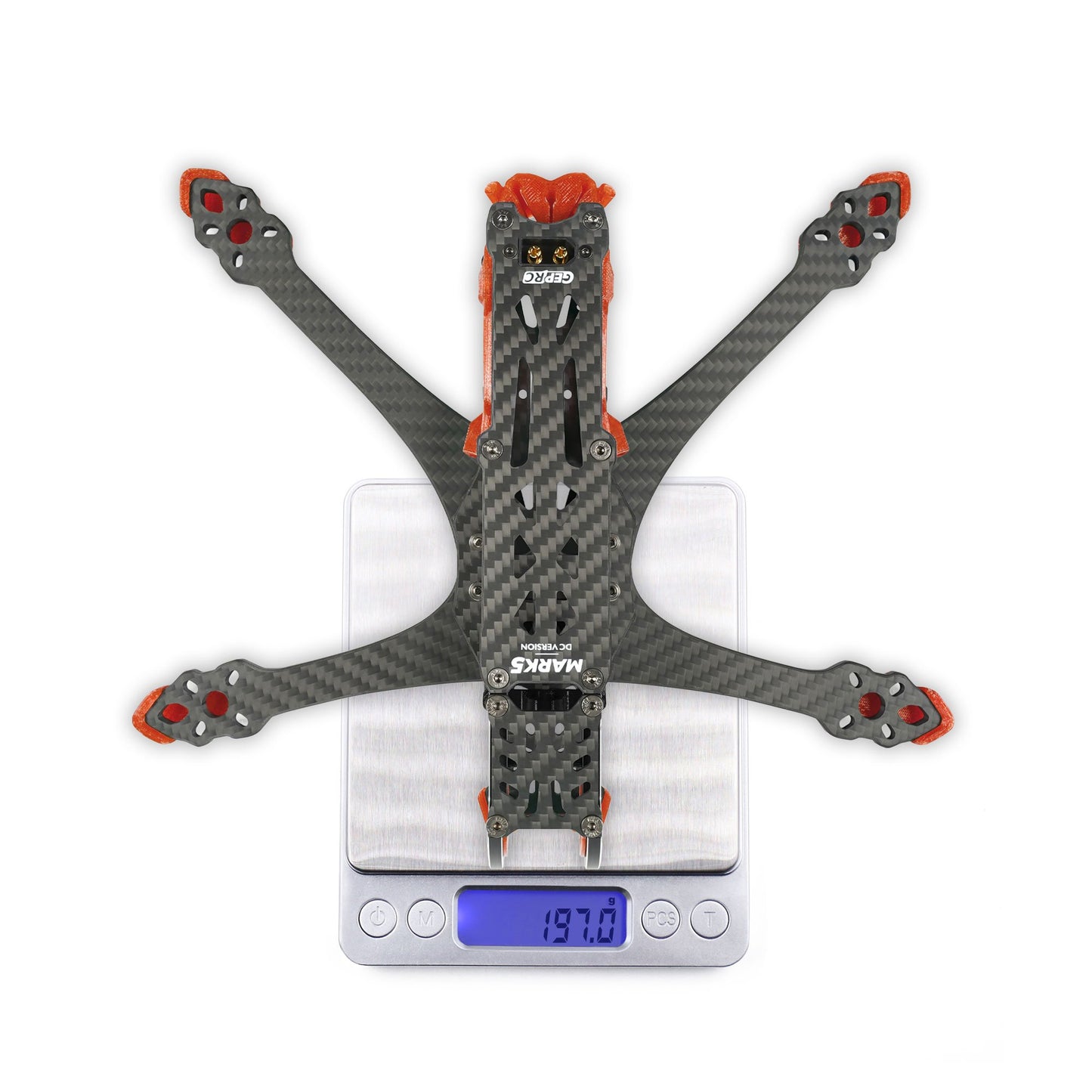

  • Pro Version Weight: 197.0g

Features

1. Upgraded lens aluminum alloy side plate, durable and more visual impact.

2. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.

3. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter.

4. Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear.

5. Compatible motor mounting holes, support the installation of motors with 16x16mm and 19x19mm holes.

6. Add coral orange colors to the O3 version to add more colors to your flight.

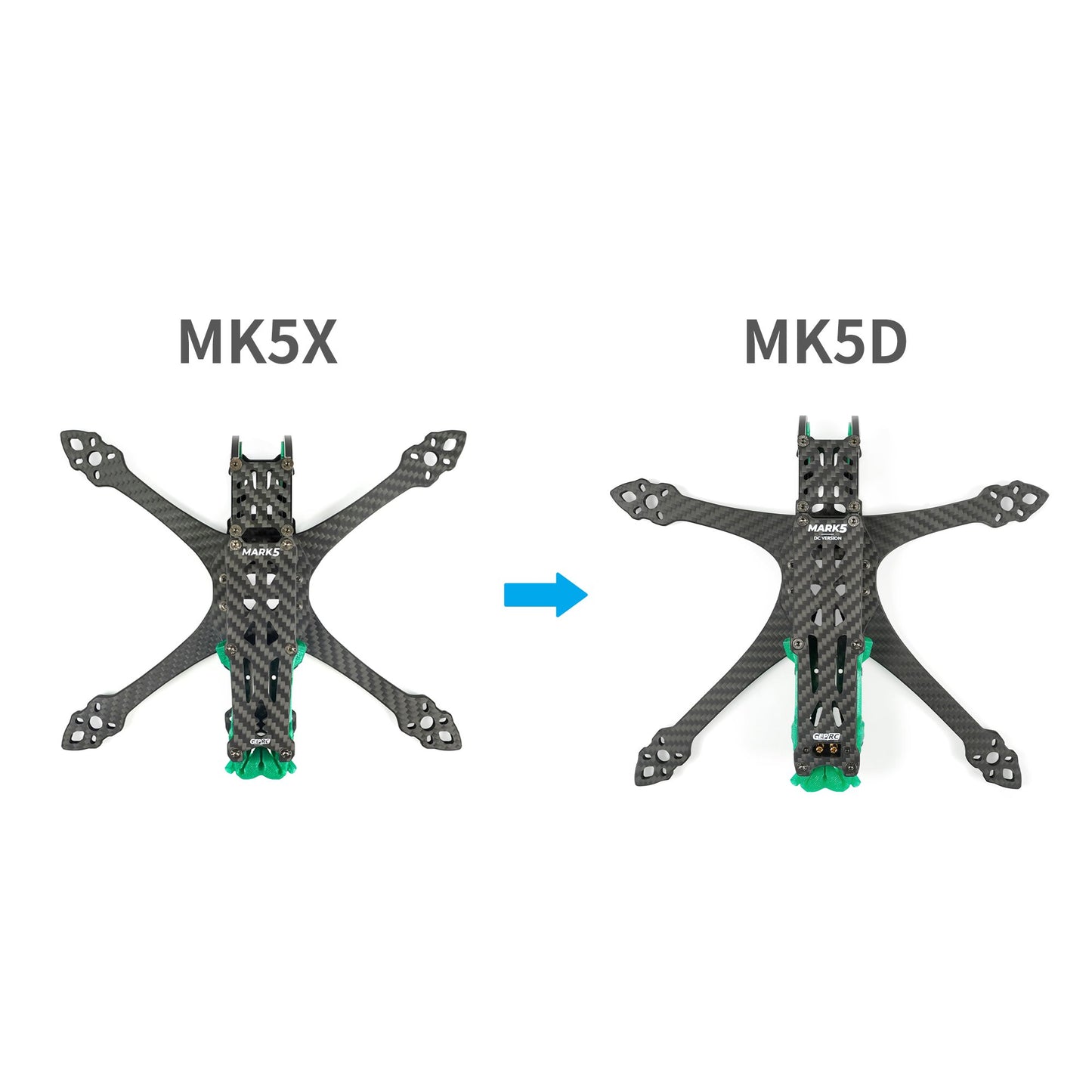

7. The DC structure is suitable for O3 onboard recording when no propeller in view during flight, while the X structure is more suitable for freestyle when the propeller is slightly visible during O3 onboard recording.

Includes

1 x MARK5 Frame Kits

1 x Battery strap M15x250mm

2 x Battery strap M20x250mm

2 x Battery Silicone Pads

1 x 3M Double-sided tape

1 x EVA GoPro Base

1 x EVA GoPro Base (with backrest)

1 x Set of 3D printed parts

2 x Action camera mount holder

1 x Set of screws

1 x Set of screwdrivers

1 x Antenna fixed tube
