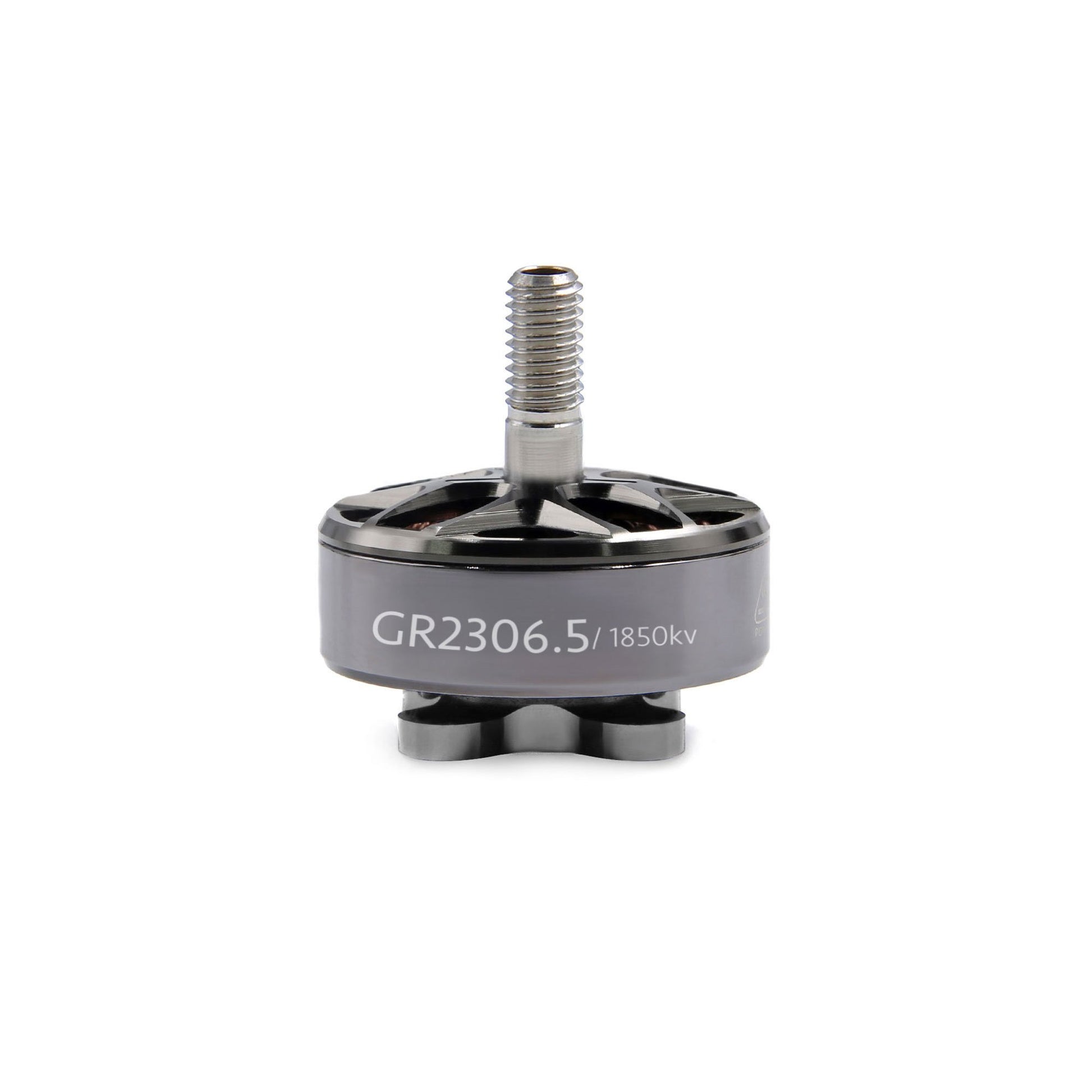

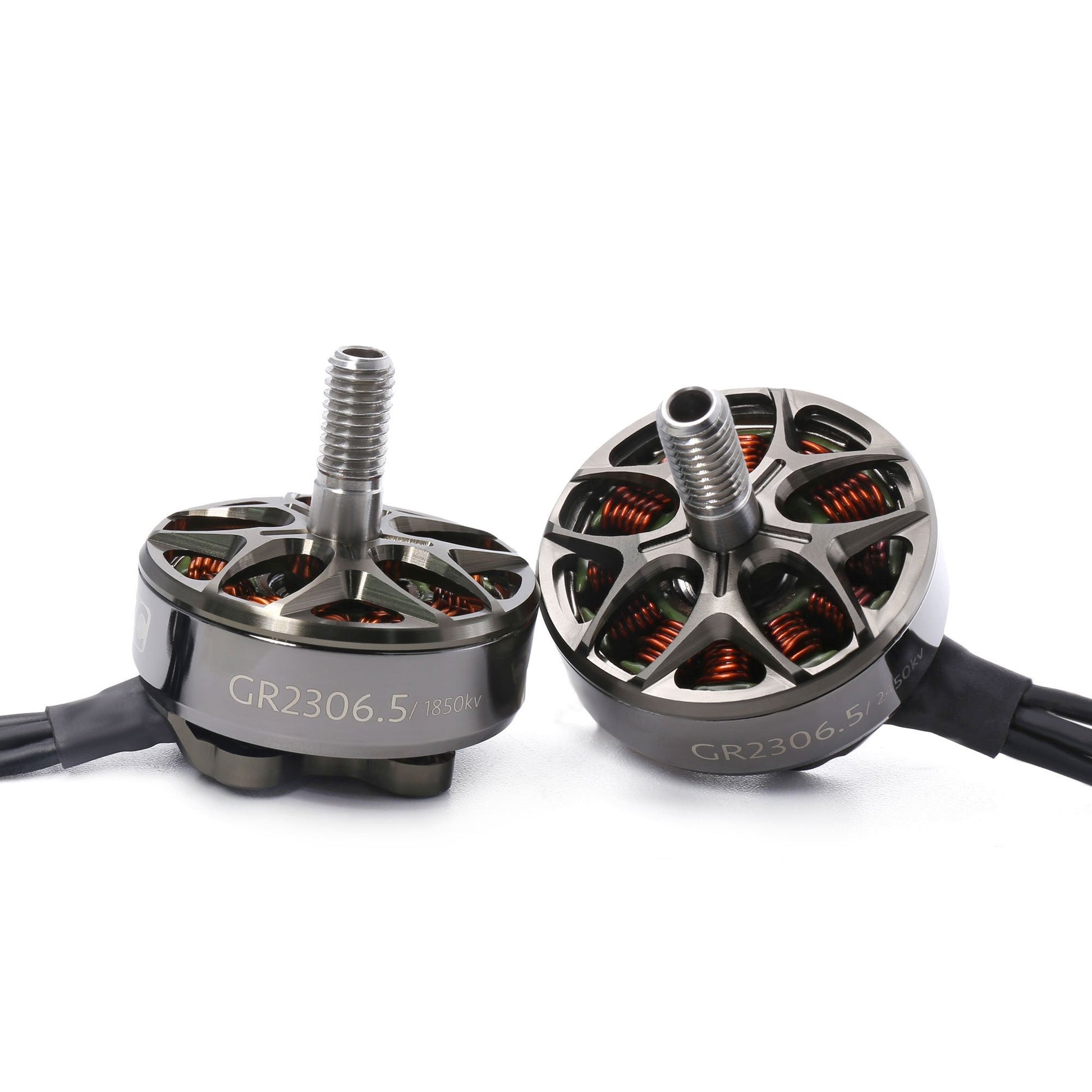

GEPRC GR2306.5 1850KV

Specifications:

• Item name:GR2306.5 Motors
• KV: 1850KV

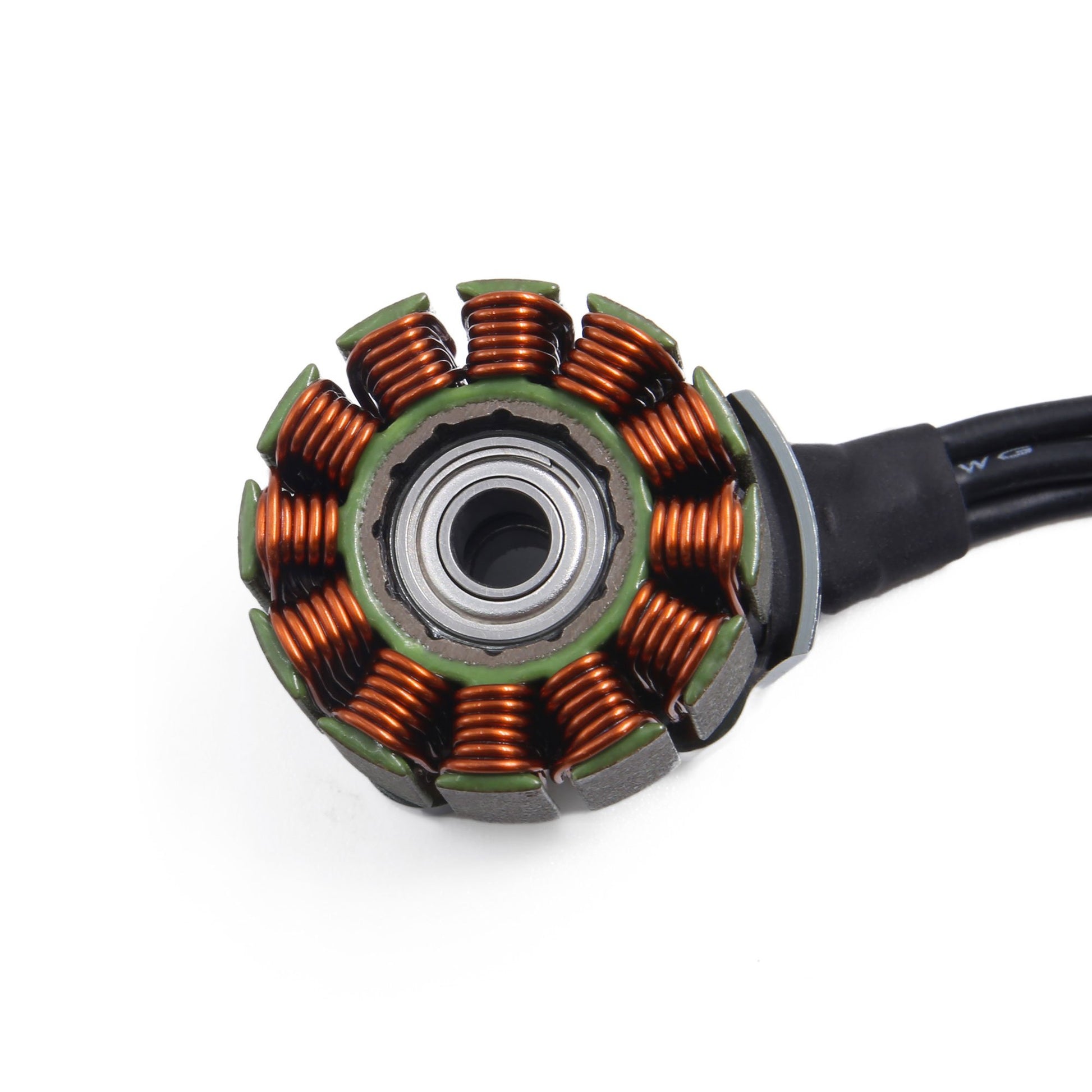

• Configuration:12N14P
• Stator Diamter: 23mm
• Stator Length: 6.5mm
• Shaft Diameter: 4mm(Hollow)
• Motor (Dimension(Dia.*Len)): Φ28.2*29.2mm
• Idle current(10)@10V(A): 1.95
• of Cells(Lipo):4~6S
• Max Continuous (Power(W)15S):1000
• Internal Resistance:38mΩ
• Max Current(15S):49A
• Effciency Current:(3-7A)>85%

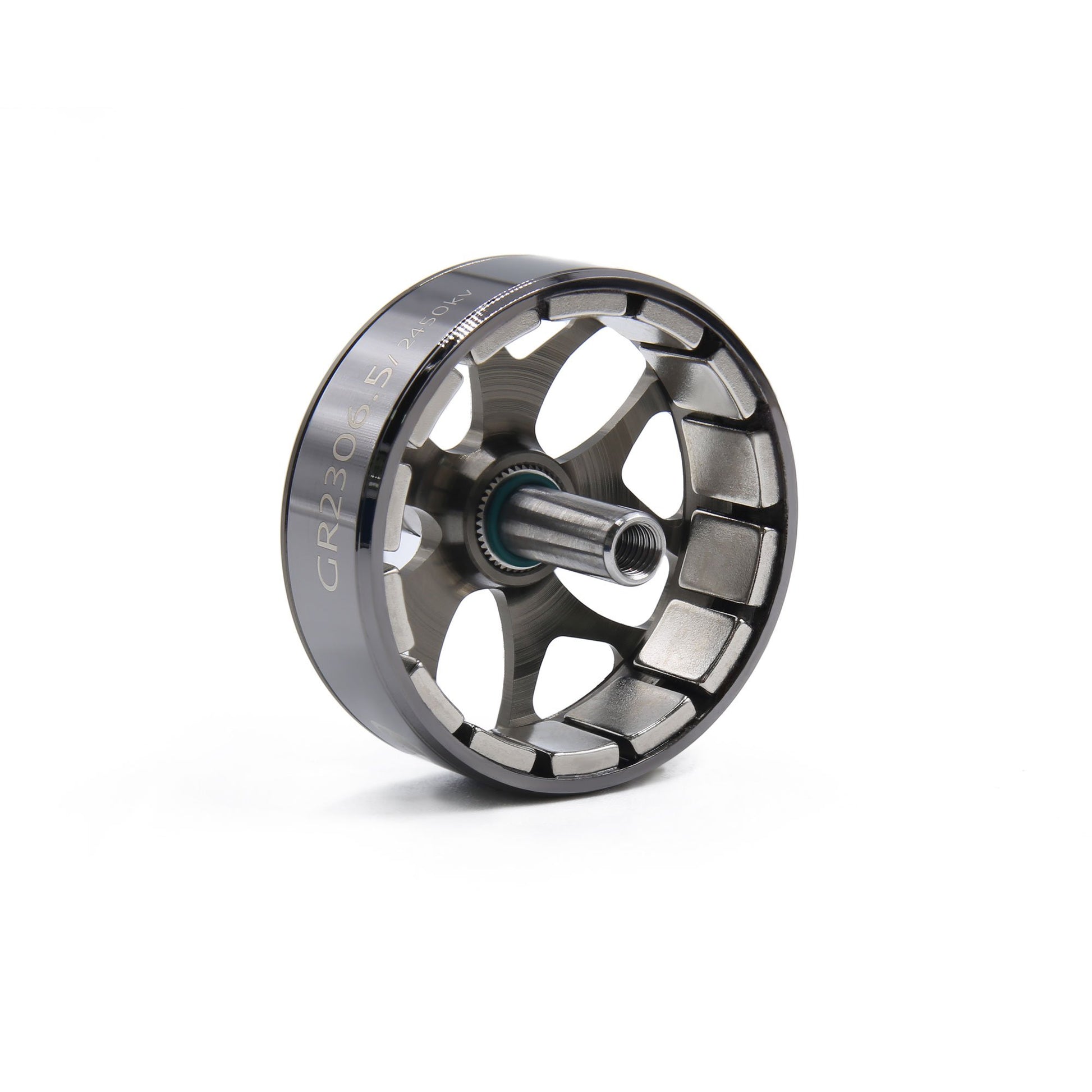

• Rotor: N52H arc magnets
• Bearings:JAPAN ISC

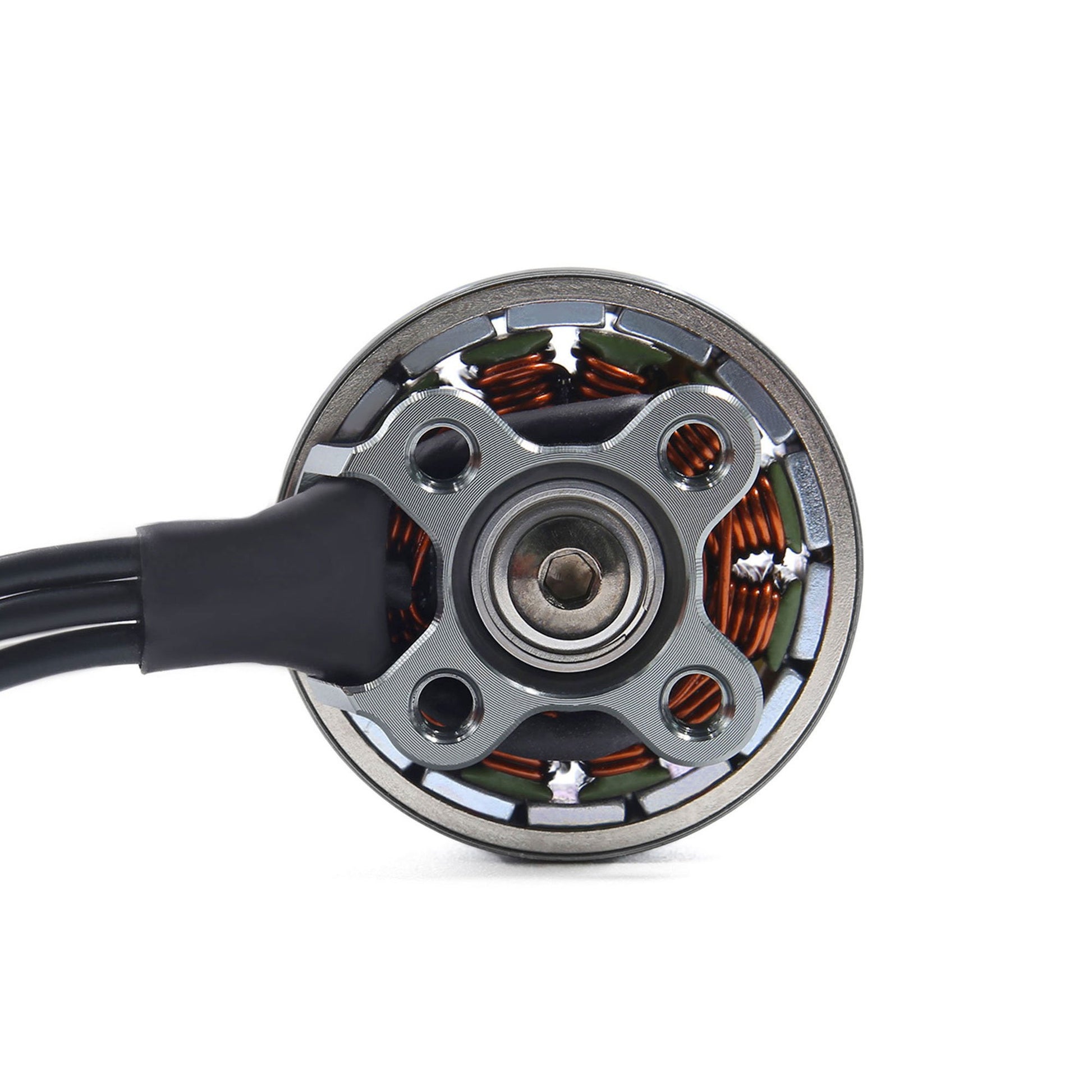

• Base casing: Al 7075
• Wire AWG: 20AWG
• Weight(g):31g (not include wire)

Package included:

• 1x GEPRC GR2306.5 Motor
• 1x GEPRC M5 Aluminum Lock Nut
• 4x M3x7 Button head screws
• 4x M3x8 Button head screws
•
