Moblite7 Walksnail ELRS

  • Sale
  • Regular price €227,95
Tax included. Shipping calculated at checkout.

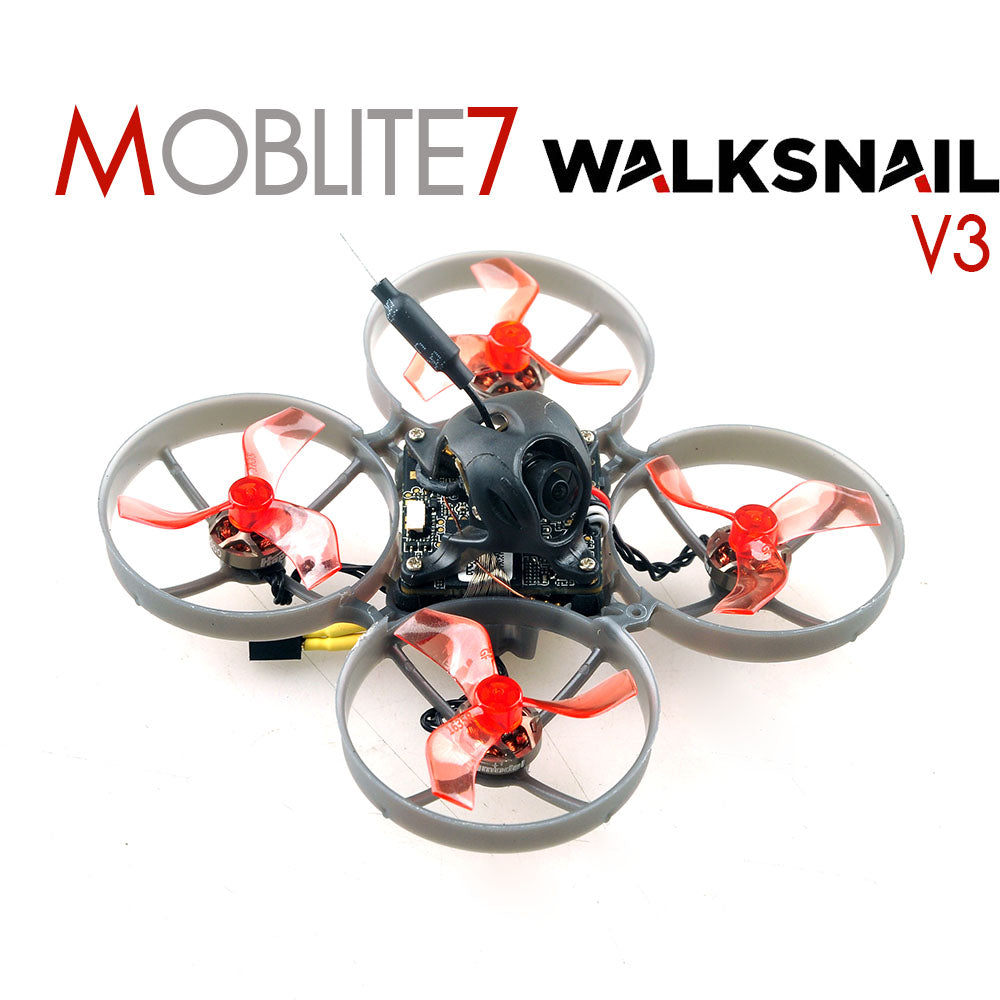

The Moblite7 from Happymodel is a 1S brushless whoop that includes the Walksnail Avatar Nano HD FPV system.

This gives you crisp, clear HD low latency in the form factor of a tiny whoop without sacrificing flight performance thanks to the ultra-lightweight walksnail HD Air unit.



Features

  • Lightweight 1S whoop with Walksnail Avatar Nano FPV TX unit onboard
  • Powerful and efficient
  • SuperBee F4 AIO Flight Controller
  • Walksnail Avatar Mini  digital FPV system
  • EX1002 brushless motors
  • Low profile Canopy design

Specifications

  • Brand Name: Happymodel
  • Model: Moblite7 Walksnail
  • Frame wheelbase: 75mm

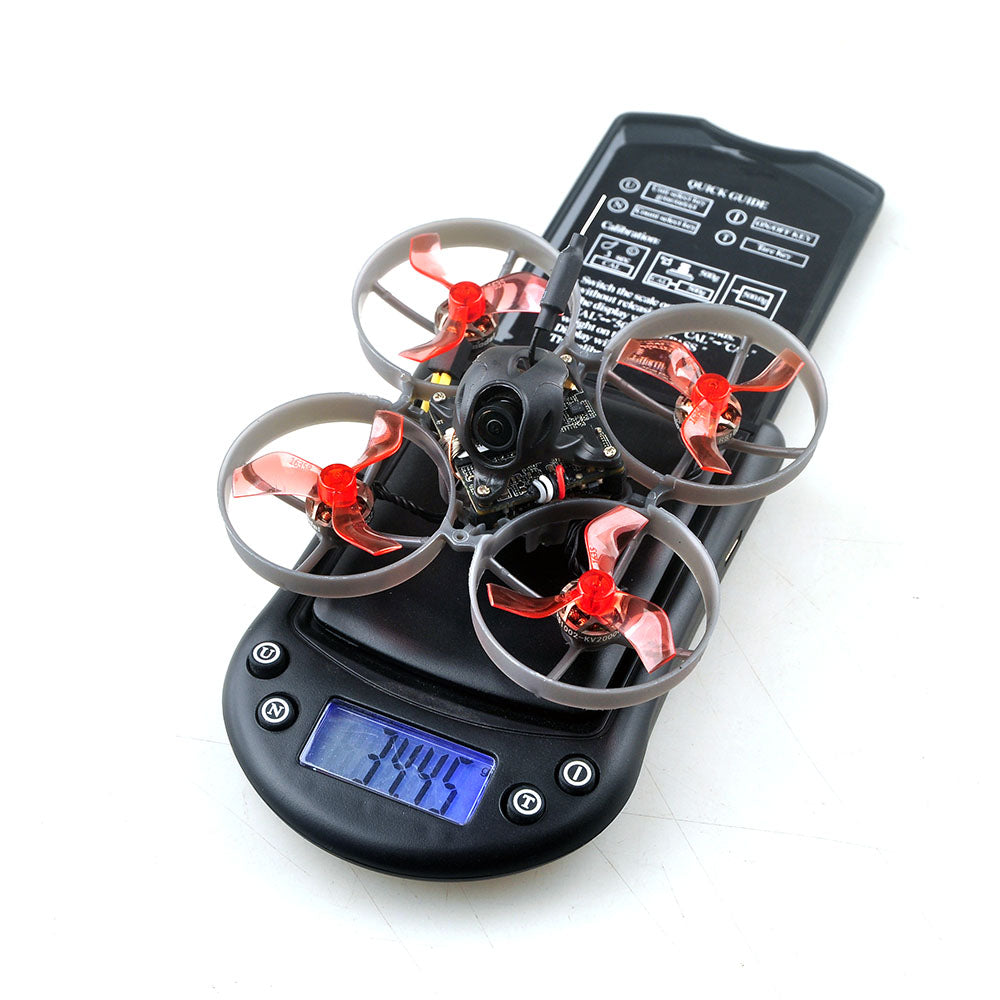

  • Weight: 33.5 gram without battery
  • Size: 98mm*98mm*50mm
  • Receiver option:
  • SPI ELRS 2.4GHz
  • SPI FRSKY 2.4GHz
  • Compatible with 1S Lipo battery or Lihv battery
  • Battery Plug: PH2.0
Flight controller
SuperbeeF4 Lite ELRS
SPI ELRS version Firmware target: CrazybeeF4SX1280
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: ICM20689 or ICM42688P or BMI270(SPI connection)
Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in SPI Frsky/ExpressLRS receiver
Built-in 5V 1A BEC
Built-in voltage detection
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
Currents: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT150/DSHOT300/DSHOT600
Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Telemetry output Power: <12dBm
Receiver protocol:  SPI ExpressLRS
Could bind with ELRS V2.0 firmware TX module
Motor Model: EX1002 20000KV
Configu-ration:9N12P
Stator Diameter:10mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm
Weight(g):2.5g
No.of Cells(Lipo):1S only
Propeller Gemfan 1610-2 Bi-blades Weight:0.24g
Material: PC
Pitch:1 inchProps Dia:40mm
Center Hole Dia:1.5mm
Avatar mini VTX Model: Avatar mini 1s module
Communication Frequency: 5.725-5.850 GHz
Transmitter Power(EIRP): FCC:<25.5dBm; CE:<14dBm; SRRC: <20dBm;MIC:<25dBm
l/o Interface: JST1.O*6(Power in)JST1.O*4(USB)
Mounting Holes: 25.5*25.5 mm
Dimensions: 33*33*6.5 mm
Storage: 8G
Recording: 1080p/720p
Weight: 6.8 g
Operating Temperature: -20-40℃
Channels: 8
Wide Power lnput: 3.1V-5V
Supported FC System: Betaflight
OSD: Canvas mode
Bitrate: 25mbps / 50mbps
Latency: Average delay 22ms
Antenna connector: IPEX
Avatar nano FPV Camera Model: Avatar nano
lmage Sensor: 1/2.7”Inch
Resolution: 1080P/6Ofps,720P/120fps,72OP/6Ofps
Ratio: 16/9 4/3
Lens: 2.1mm
FOV 170°
Aperture: F2.0
Shutter: Rolling shutter
Min.Illumination: 0.001Lux
Weight: 3.5g
Dimensions: 14*14*17mm
Coaxial Cable: 45mm

Resources

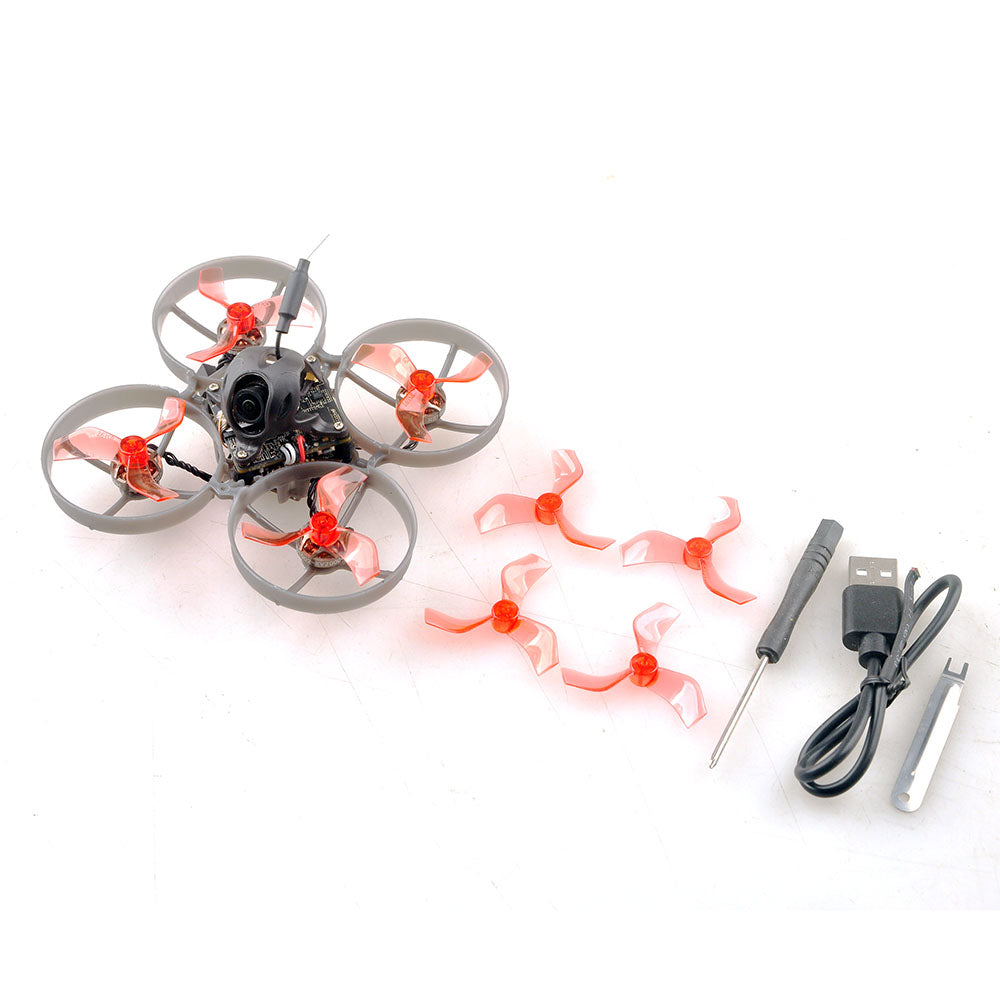

Included

  • 1 x Happymodel Moblite7 HD Walksnail Avatar
  • 1x spare canopy (depending on supply so you may not receive this)
  • 1x screw driver and prop removal tool (depending on supply so you may not receive this)
