Walksnail

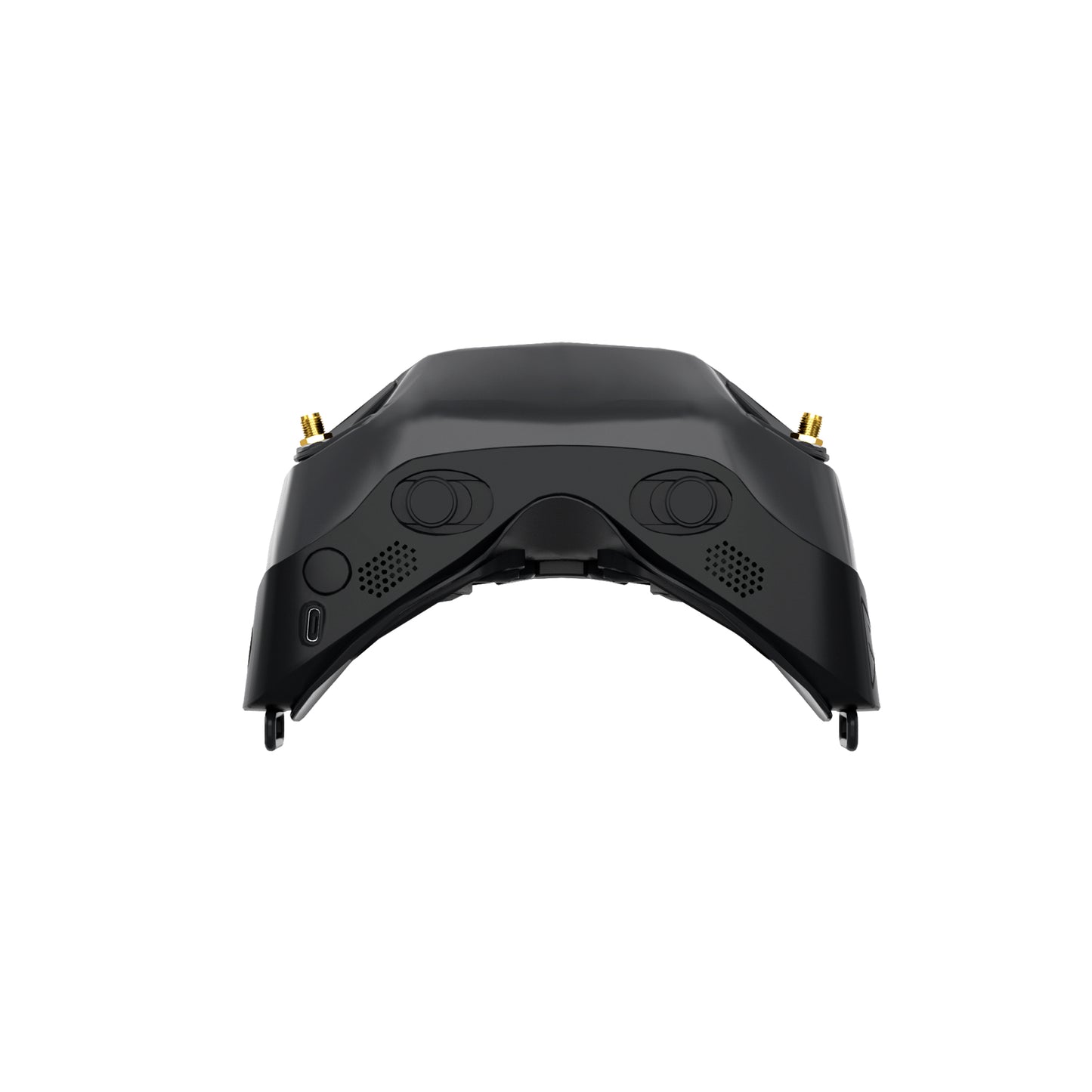

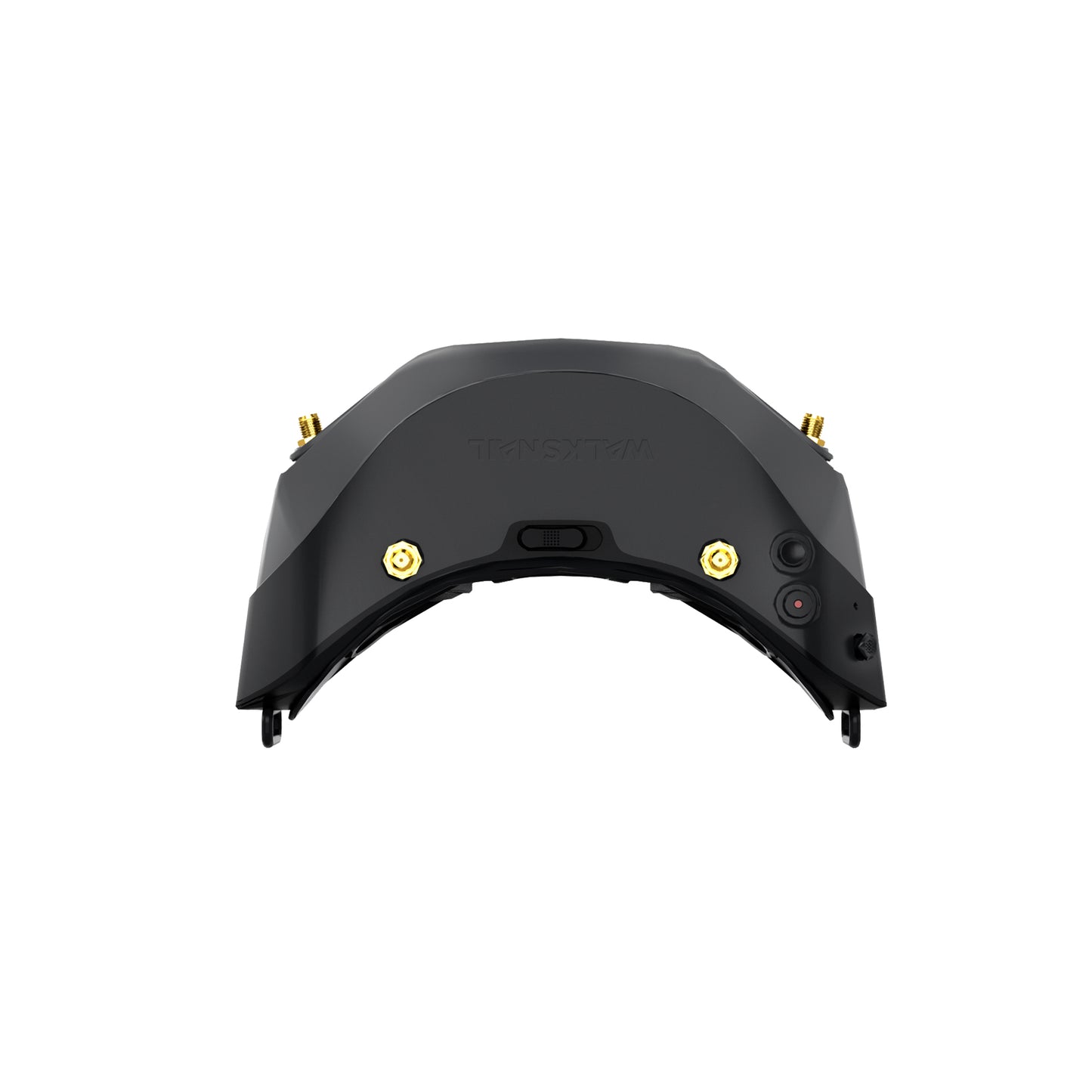

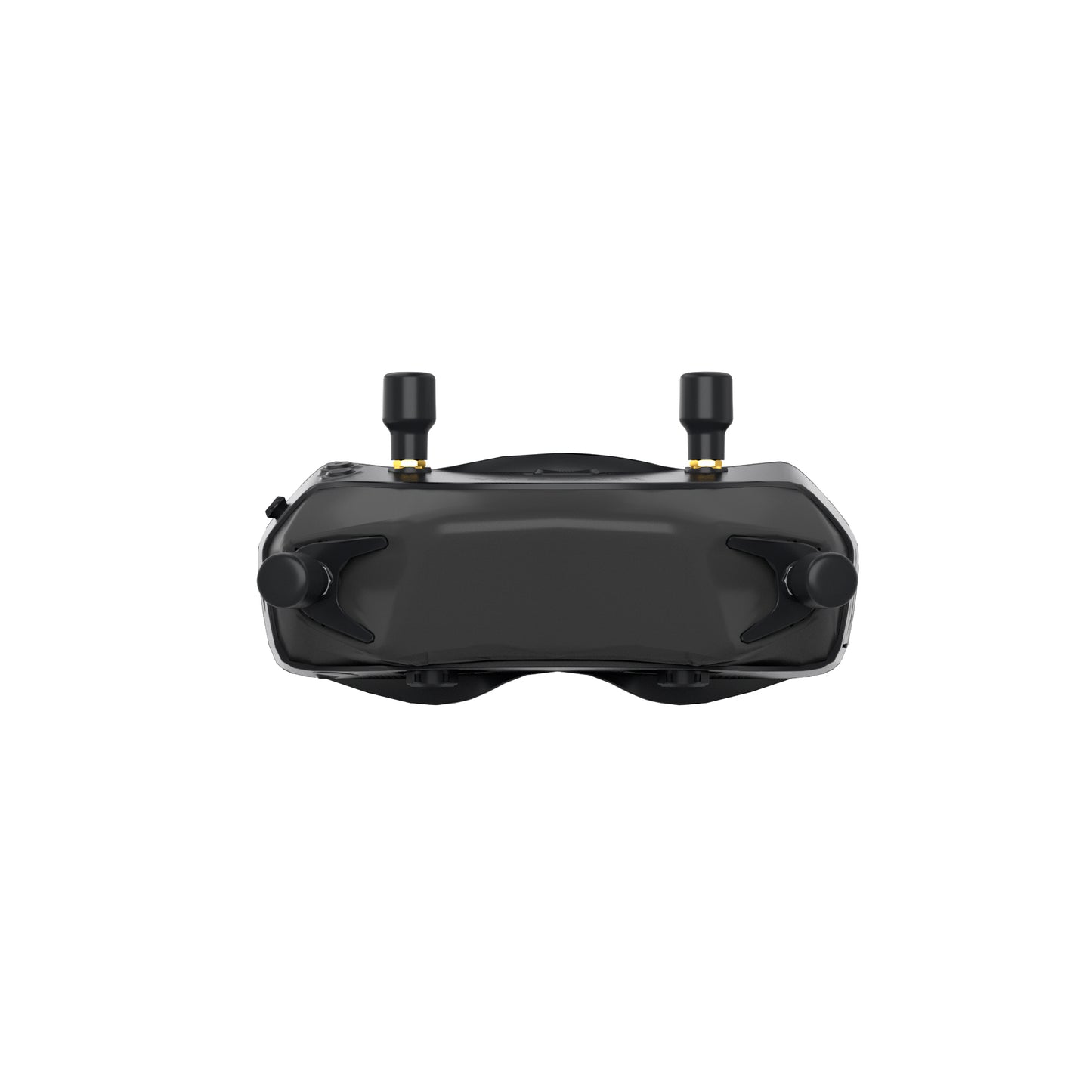

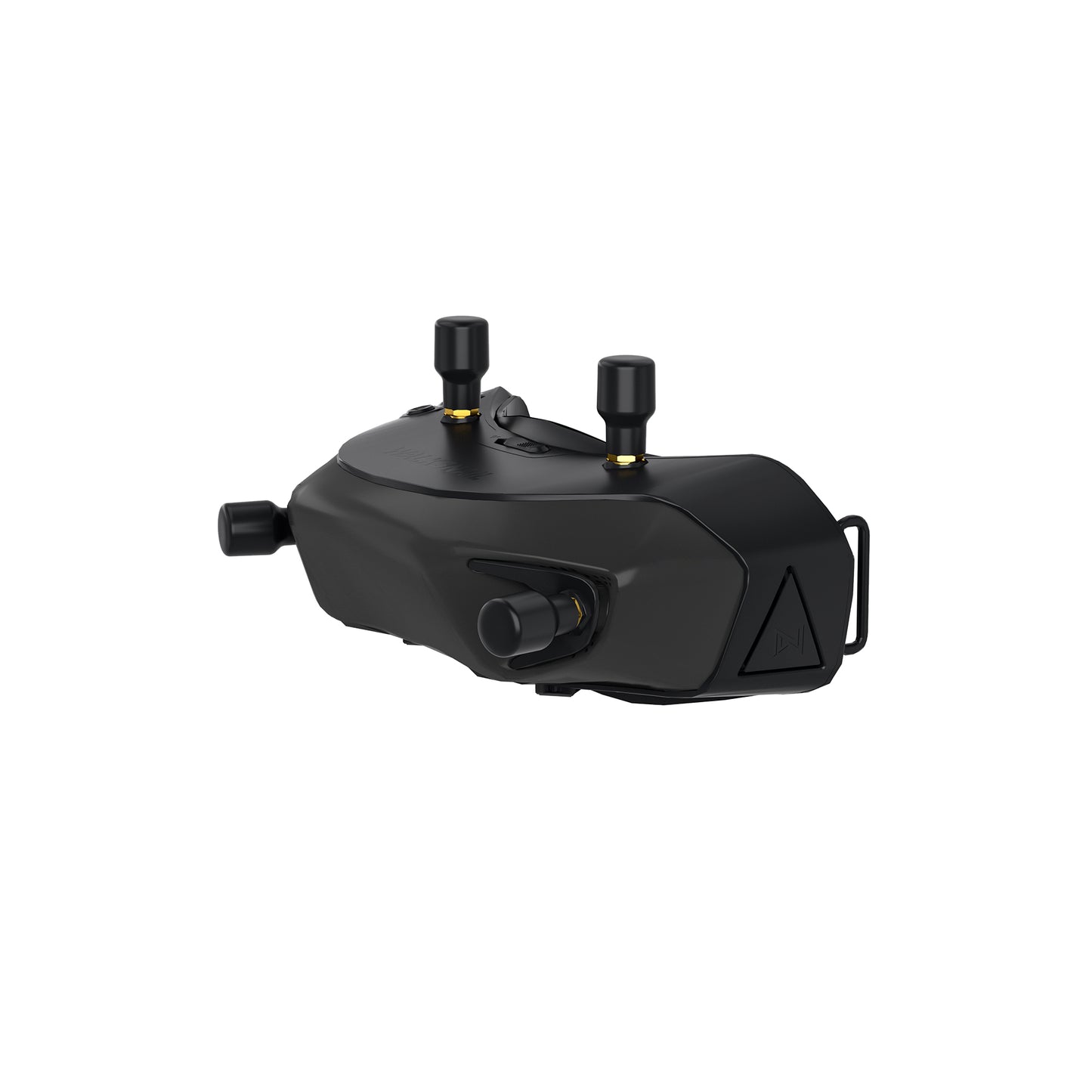

Walksnail Avatar Digital HD FPV Goggles w/ Patch Antennas

Walksnail Avatar Digital HD FPV Goggles w/ Patch Antennas

Regular price 6.699,00kr SEK
Regular price 7.929,00kr SEK Sale price 6.699,00kr SEK
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

The Walksnail Avatar Digital HD FPV Goggles feature high-fidelity Full HD OLED displays and support a new 1080p video transmission protocol in a compact design.

About this product

The Walksnail Avatar Digital HD FPV Goggles feature high-fidelity Full HD OLED displays and support a new 1080p video transmission protocol in a compact design. These goggles are designed as lightweight mini-size goggles with 46° FOV and focus adjustment with HDMI output.


Features

  • Customisable Fit with Optional Faceplate Pad Accessories
  • Red Bird LHCP 5.8GHz Goggle Antennas
  • HD Video Output via USB-C Connector
  • Supports Betaflight Canvas Mode
  • Walksnail Avatar Patch Antennas
  • Adjustable Anti-Fog Ventilation
  • On/Off Power Button
  • Integrated HD DVR
  • Focus Adjustment
  • 46° FOV

Walksnail Avatar HD Goggles

Specifications

AVATAR HD GOGGLES



  • Transmitter Power: FCC: <30dBm: CE: <14dBm: SRRC: <20dBm: MIC: <25dBm
  • Micro Displays: Full HD 1080p OLED Dual Micro Displays
  • Inter-Pupillary Distance (IPD): 57 ~ 70mm (adjustable)
  • I/O Interface: Type-C, MicroSD Card, DC 5.5x2.1mm
  • Adjustable Focus Range: +2 to -6 Diopter
  • Communication Frequency 5.8GHz
  • IPD Mechanical Range: 28-70mm
  • Power Input: 6V-25.2V (2S-6S)
  • Screen Resolution: 1920x1080
  • IPD Visual Range: 54-74mm
  • Model: Avatar HD Goggles
  • SD Card: Supports 256Gb
  • HDMI Output: Supported
  • Field of View (FOV): 46°
  • Screen Size: .49 Inches

RED BIRD ANTENNA

  • Cross-Polarization Rejection: -15 to -30dBi
  • Radiation Efficiency: >97%
  • Dimensions: 24.8x15.3mm
  • Bandwidth: 5.6-6GHz
  • Average Gain: 1.9dBi
  • Connector: RP-SMA
  • Polarization: LHCP
  • Model: Red Bird
  • Weight: 4.2g
  • VSWR: <1.3

AVATAR PATCH ANTENNA

  • Frequency range (MHz): 5725-5875
  • Ambient temperature (℃): -40+60
  • HPBW: 75°H-plane75°E-plane
  • Front to back ratio (dB): >10
  • Input Impedance (Ω): 50
  • Power Capacity (W): 10
  • Interface: RP-SMA
  • Polarization: LHCP
  • Gain (dBi): 8
  • VSWR: <1.5

Includes

  • 1x Walksnail Avatar Digital HD FPV Goggles
  • 2x Walksnail Avatar Patch Antennas
  • 1x Lens Cleaning Cloth
  • 4x Red Bird Antennas
  • 1x XT60 Power Cable
  • 1x Goggle Strap
  • 1x Carry Case
