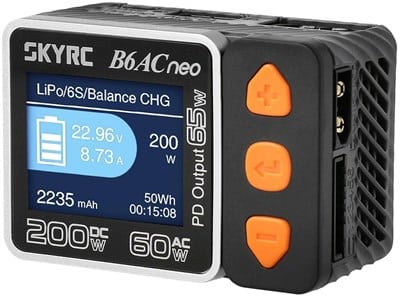

SkyRC B6ACneo 60/200W LiPo Battery Charger

SkyRC B6ACneo is a small and powerful charger for Lipo batteries. The charger has an integrated power supply, but still retains the small size of 46x50x70mm and weight of 150g. The charger also includes a USB-C output supporting QC and PD protocols with a maximum power output of 65W.

When powered by AC voltage from a power outlet, charging power is limited to 60W. The charger can also be powered by DC voltage via XT60 connector from an external power supply or battery. The supported voltage range is 10-30V. In this mode, the charger can charge up to 200W. So you will benefit from fast charging especially on the field or race track between flights.

This unit supports all common battery types and can charge with current up to 10A (considering the max power of 60/200W). The charger can also be switched to regulated DC power supply mode with adjustable current and voltage. The charger can also discharge the batteries. When using only the XT60 connector, the discharge power is 5W. When the XT60 connector and balancer are combined, the discharge power is up to 19W. Active cooling is provided by an integrated fan. All charging information is displayed on the 1.77" display.

Specifications:

Weight: 150 grams
In: DC 10-30V or PD3.0 PD3.0: 5V@3A, 9V23A, 12V@3A, 20V@3.25A
Display 128xRGBx160
Dimension: 70.6×50.6x46mm
Number of cells: LiPo 1-6S
Number of cells: NiMh/NiCD 1-15
Charging power 0.1-10A
Max Charging Power DC: 200W
Max Charging Power PD3.0: 60W
Discharge 19W (6S (4.2V/S)
