GEPRC RAD VTX 5.8G 1.6W
GEPRC RAD VTX 5.8G 1.6W
Regular price
853,00 NOK
Regular price
Sale price
853,00 NOK
Unit price
per
Taxes included.
Shipping calculated at checkout.
Low stock
Couldn't load pickup availability
Summary:

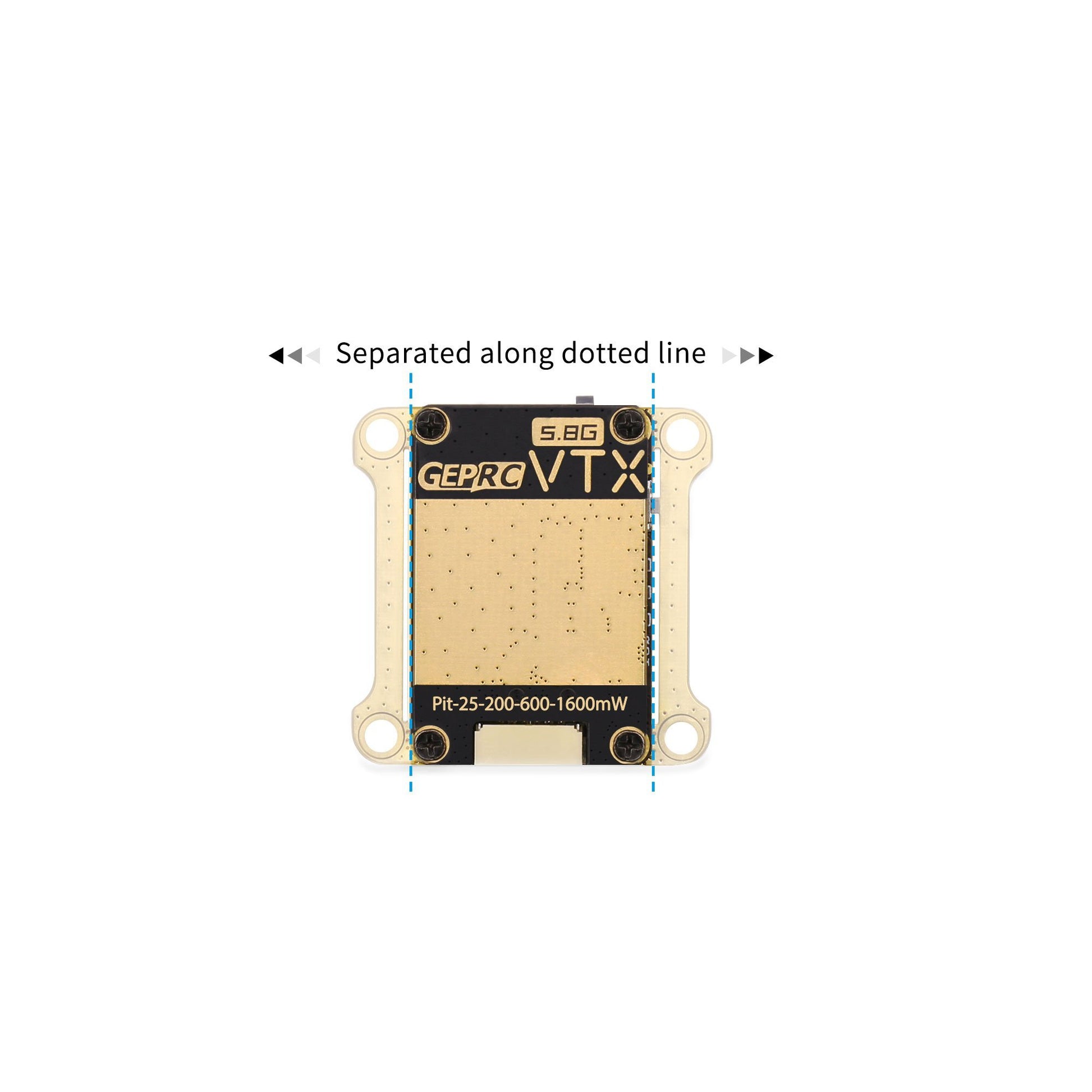

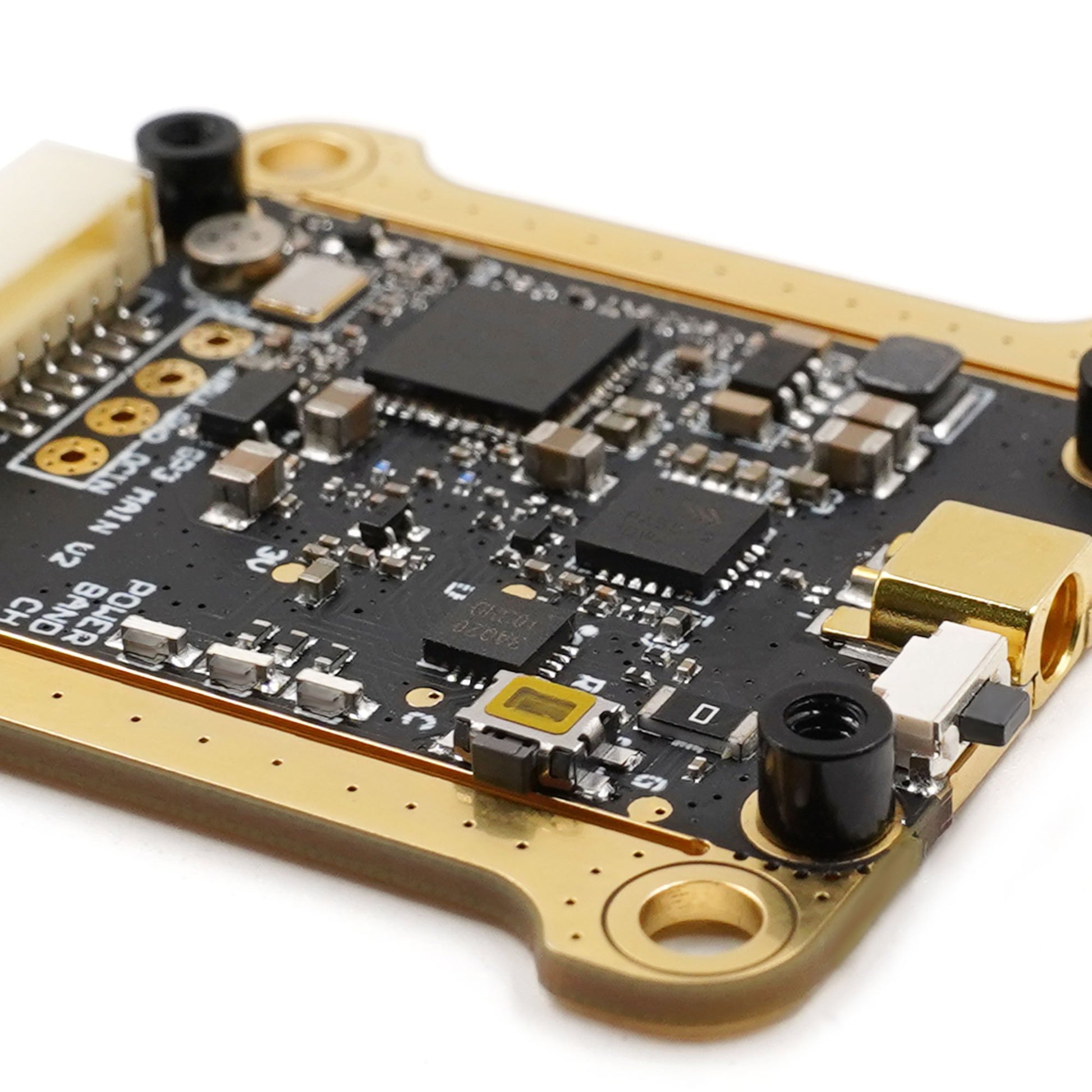

I’m glad to introduce the newly developed RAD VTX 1.6W by GEPRC.It is a super-power VTX with a maximum power of 1600MW and five adjustable gears:Pit/25mW/200mW/600mW/1600mW is adopted.The RAD adopts a double-layer PCB design to separate the power supply from the main-board,which can reduce and shield interference. Double layer structure for better heat dissipation. The built-in microphone on the VTX board,supports 7-36V voltage(2-8S Battery) input, uses the mainstream MMCX connector ,and the mounting hole is 30.5×30.5mm.
Feature:
- 1600mW Super power ,Suitable for Long Range flight with good stability.
- Five power channel: PIT mode/25mW/200mW/600mW/1600mW.
- Two-layer board cooling structure,Separate power BEC and main-Board,Reducing and shielding from the insinal interference.
- Temperature control protection function that can prevent high temperature burning
- Wide voltage input, Supports 7V-36V Voltage input.
- VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
- VTX built in microphone,Real-time transmission of Drone’s sounds.
- Has 3 regional frequency tables to meet the needs of various regions.
- Two function buttons, three indicator lights, easy to control.
- Mounting hole is 30.5mmx30.5mm.
Specifications:
- Model: GEPRC RAD VTX 5.8G 1.6W
- Input voltage: DC 7-36V(2-8S Battery)
- Output: 5V@600mA(power 5V to Camera)
- Input impedance: 75Ω
- Protocol: IRC Tramp
- Antenna interface: MMCX

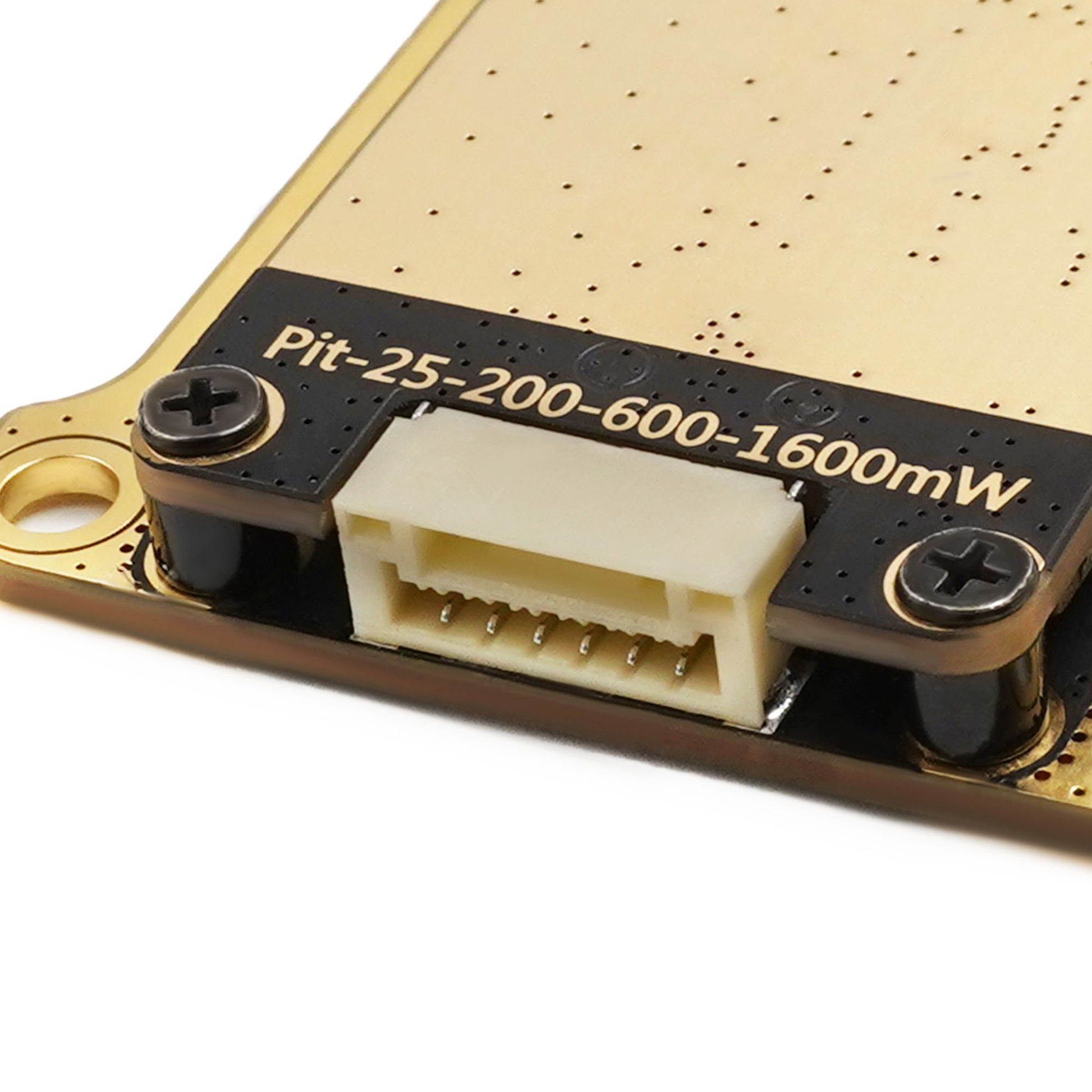

- Output power: PIT mode/25mW/200mW/600mW/1600mW PIT MODE
- Frequency tables: Universal frequency table(40CH),American FCC frequency table(37CH),European EU frequency table(26CH)
- Video format: PAL / NTSC
- Microphone: Built in microphone

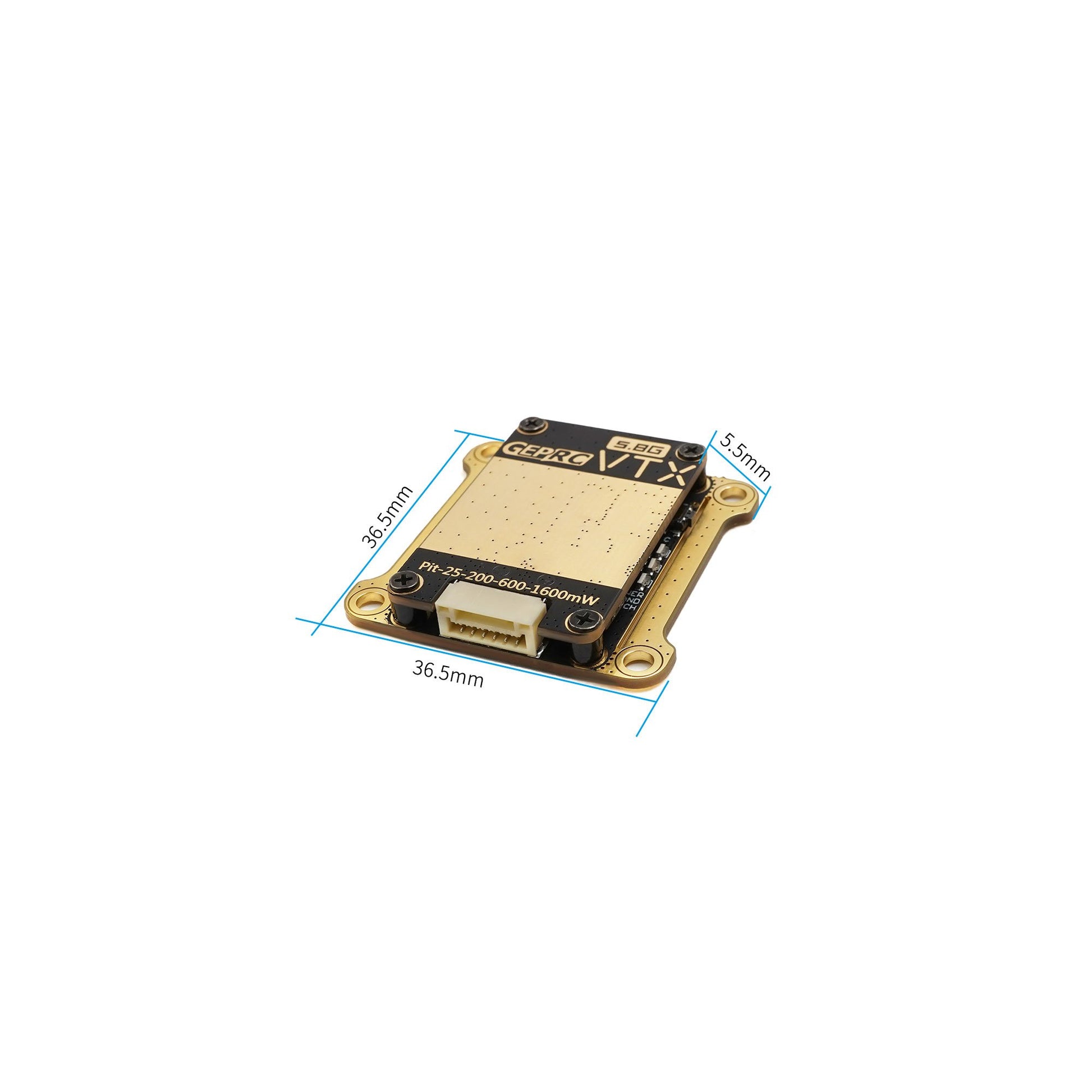

- Size: 36×36.5×5.5mm

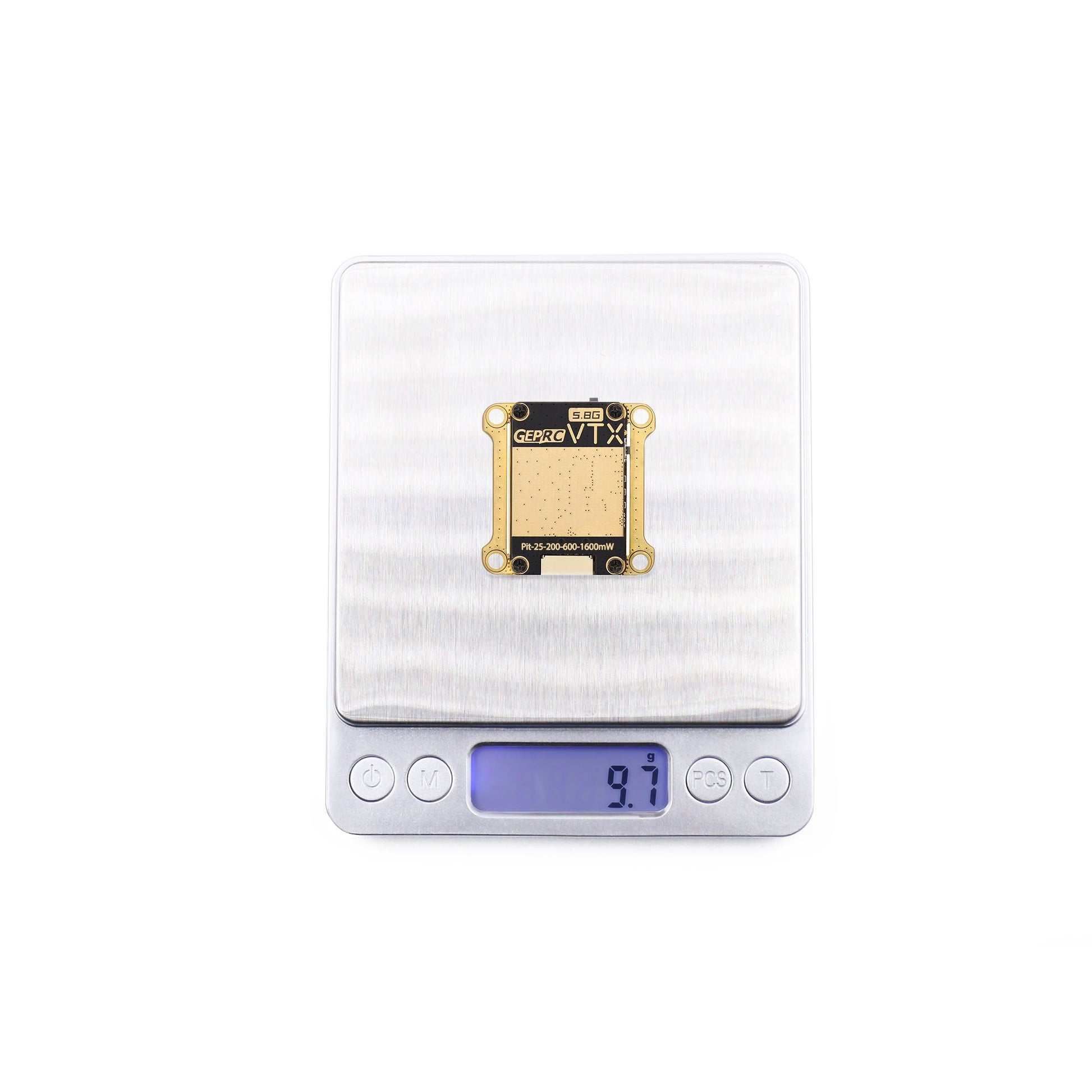

- Weight: 9.7g(without cable)
- Mounting hole: 30X30mm(M3)
Warning：
- Install Antenna before use.
- To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
- The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

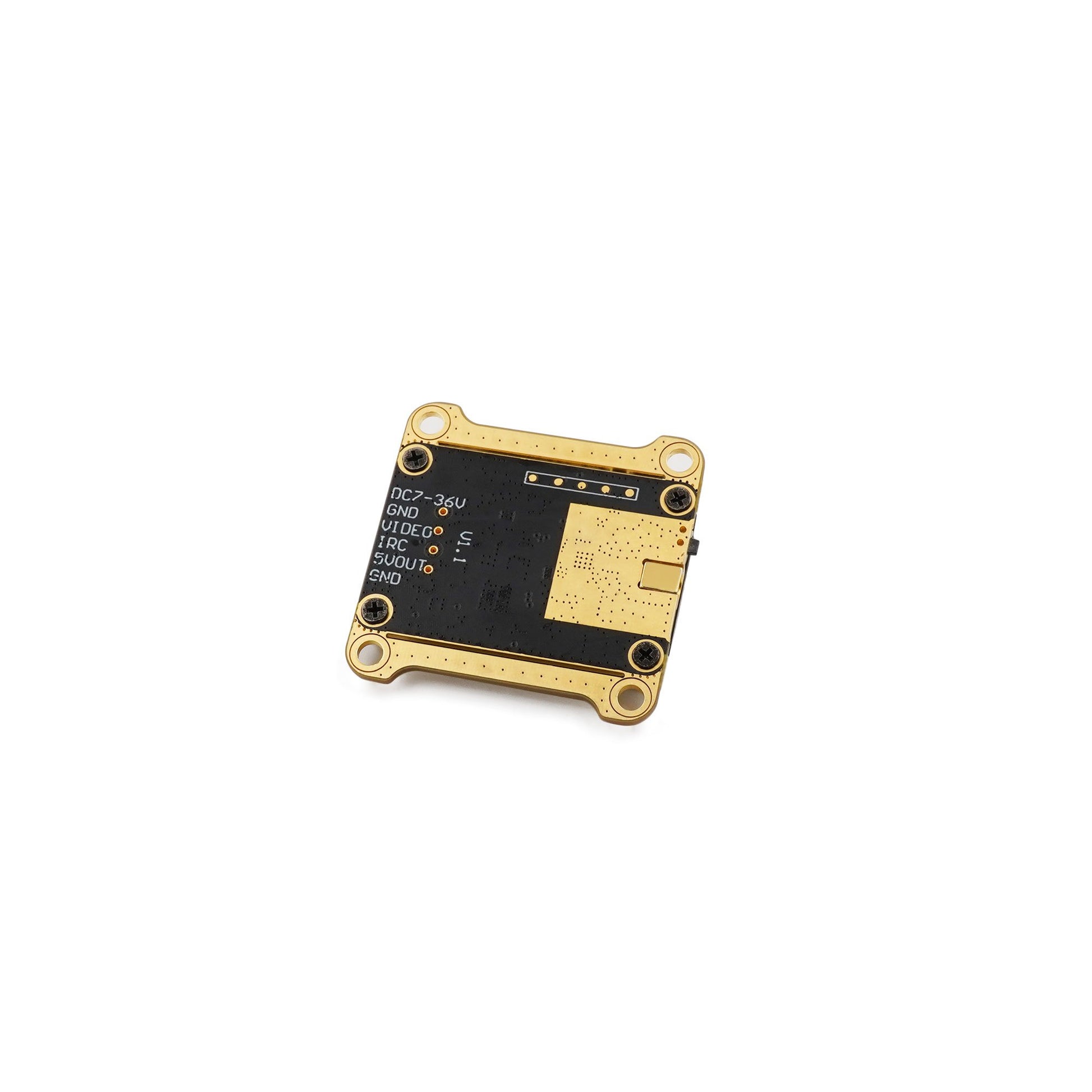

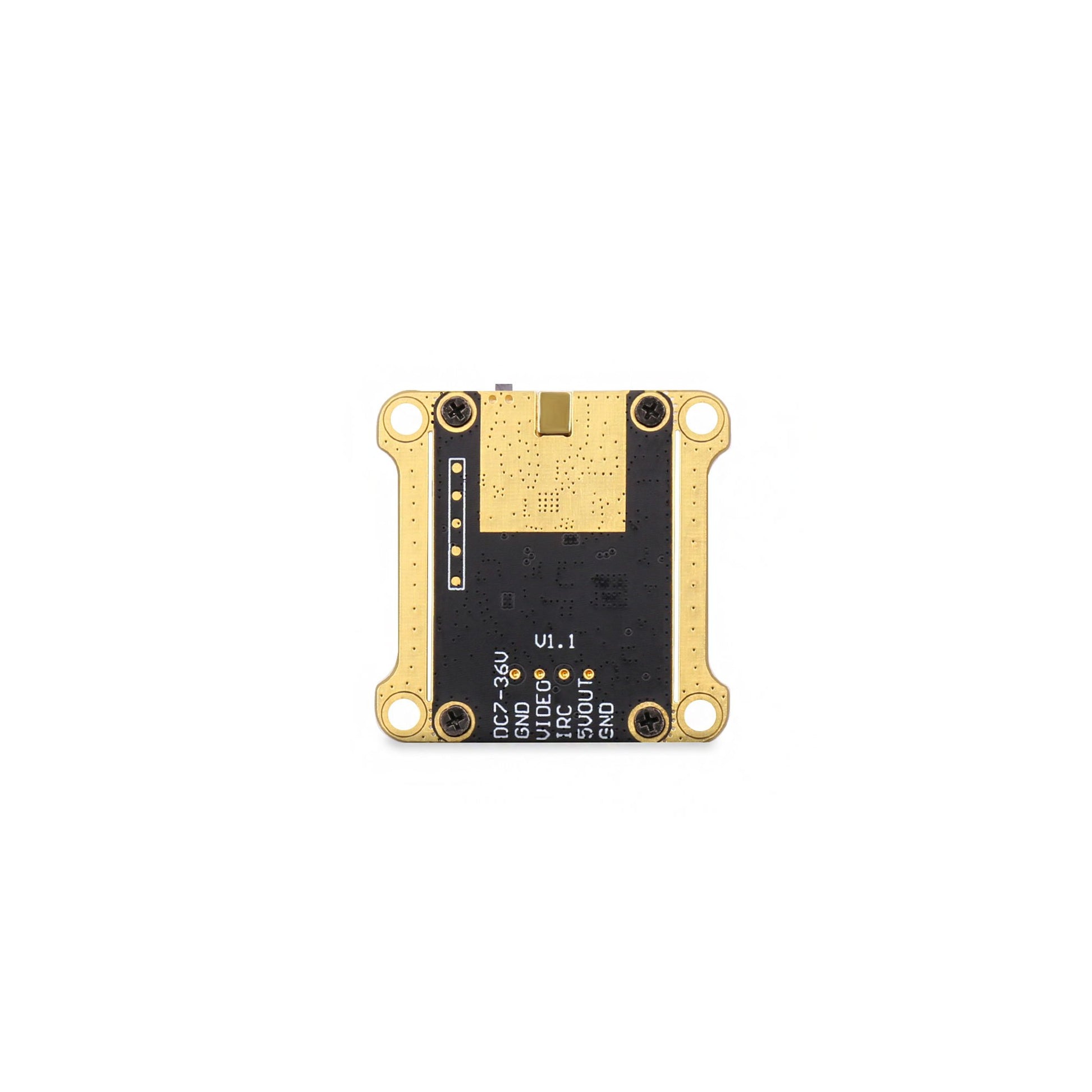

Connector definition description:
- DC 7-36V: Input 2-8s Battery power
- GND: Common ground wire
- Video: connect to the video output port of FC or Camera
- IRC: Connect to UART TX port of FC
- 5V OUT: output 5V power to the Camera
- GND: Common ground wire

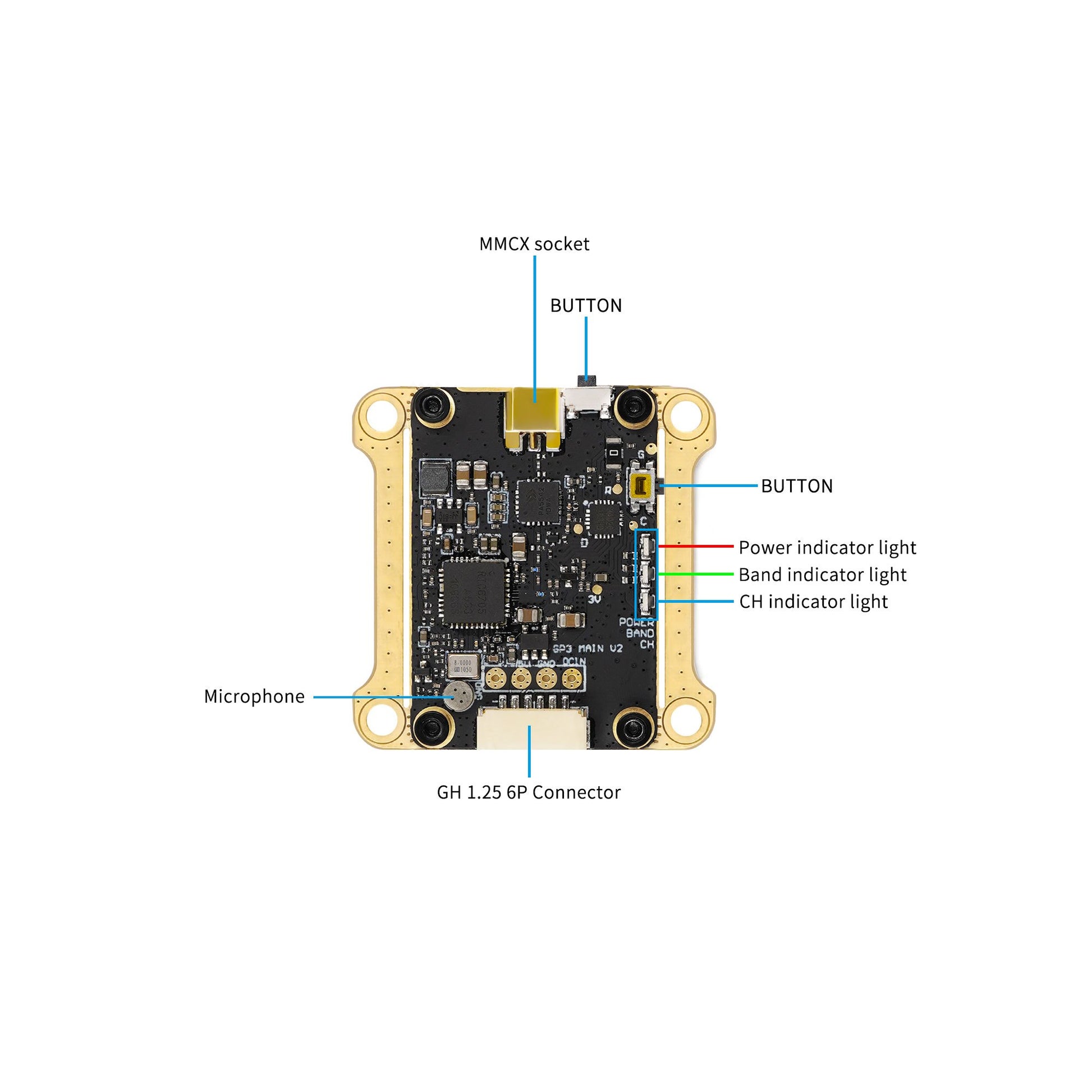

Description of button and indicator light:
- Two function button are parallel in the VTX circuit, and the operation and function are the same
- Blue light: Ch indicator
- Green light: Band indicator
- Red light: Power indicator

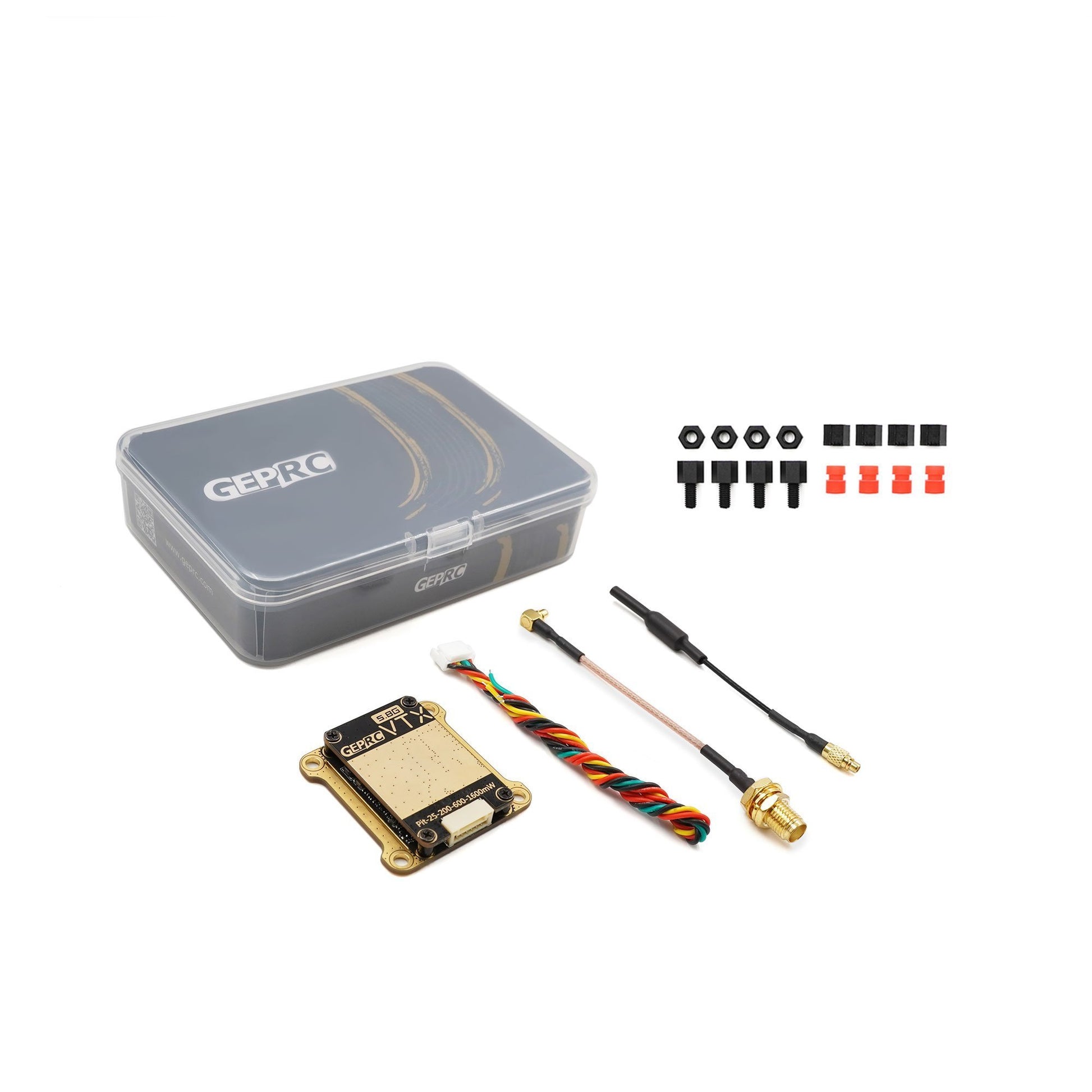

Includes:
- 1 x GEPRC RAD VTX 5G8 1.6W
- 1 x 72mm MMCX Copper tube antenna
- 1 x GH 1.25*6P 150mm Connecting cable
- 1 x MMCX to SMA（Internal foramen）connector
- 1 x Matching screw package.
