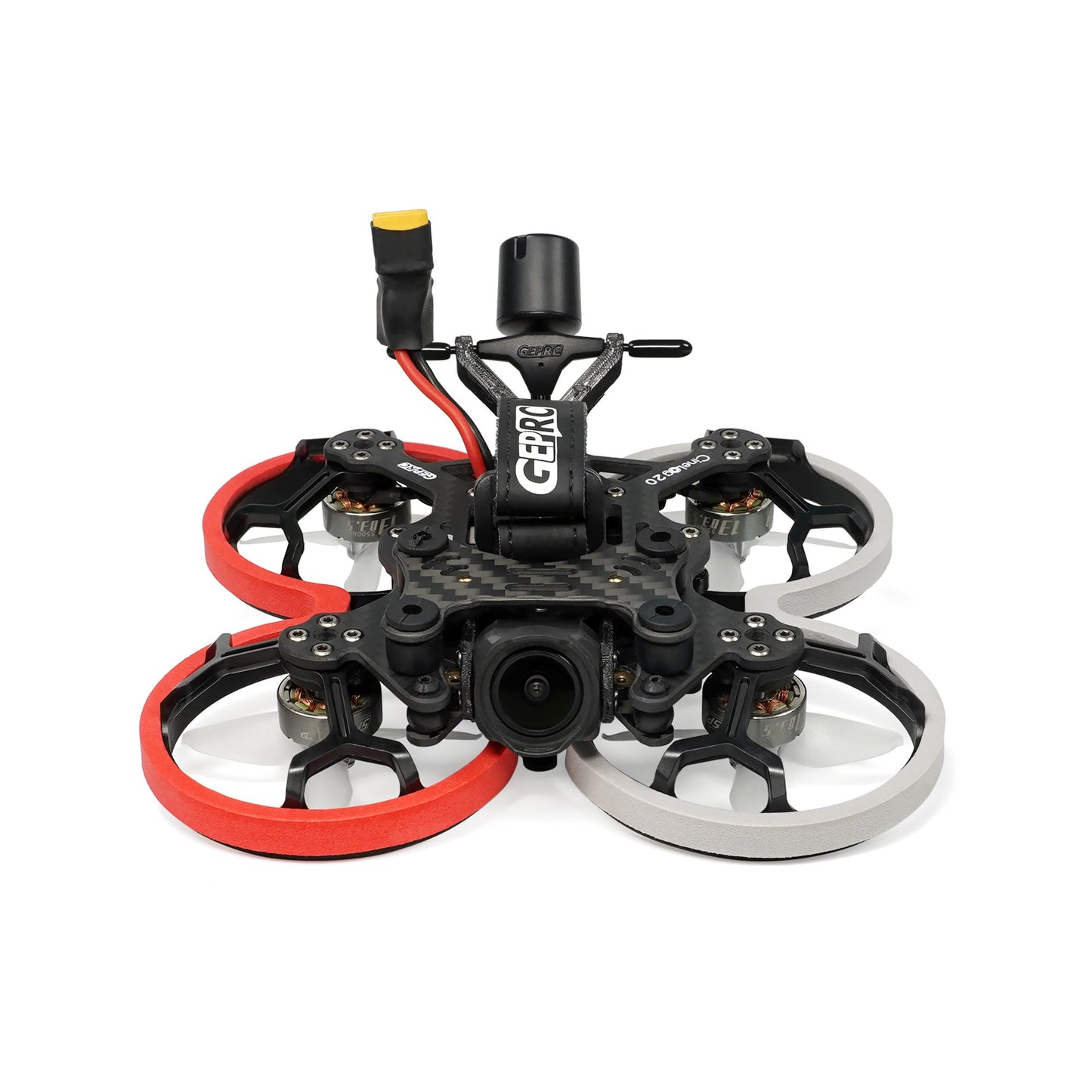

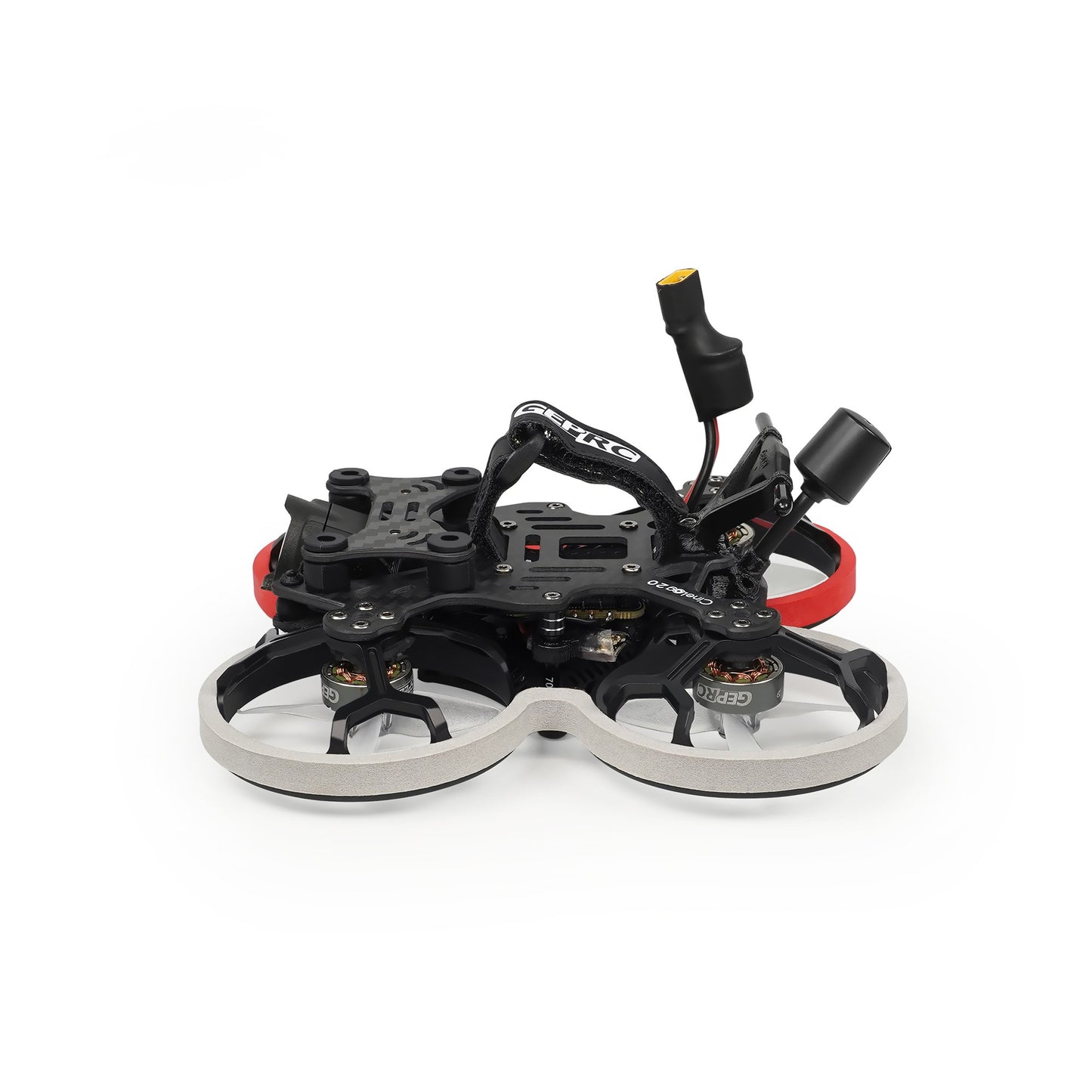

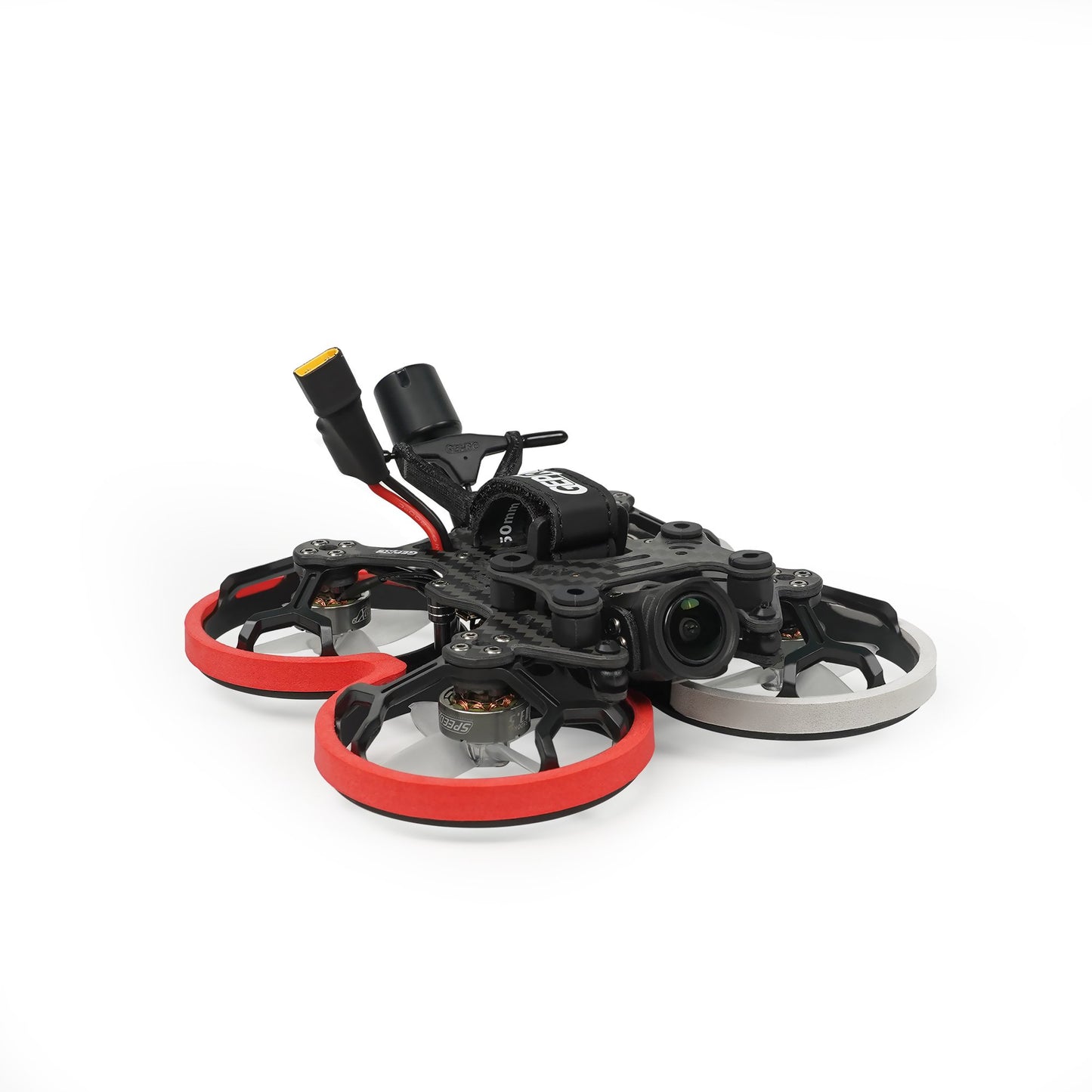

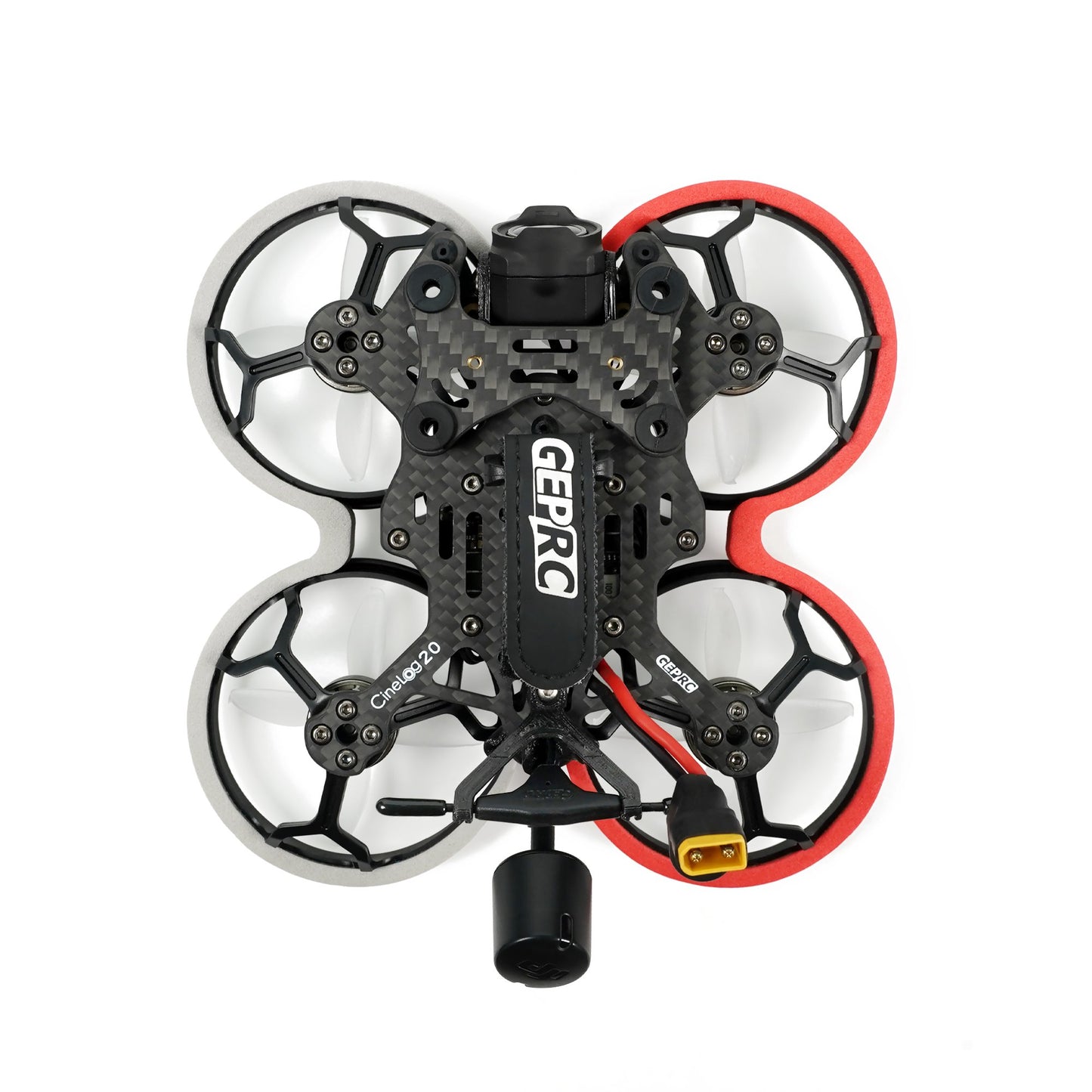

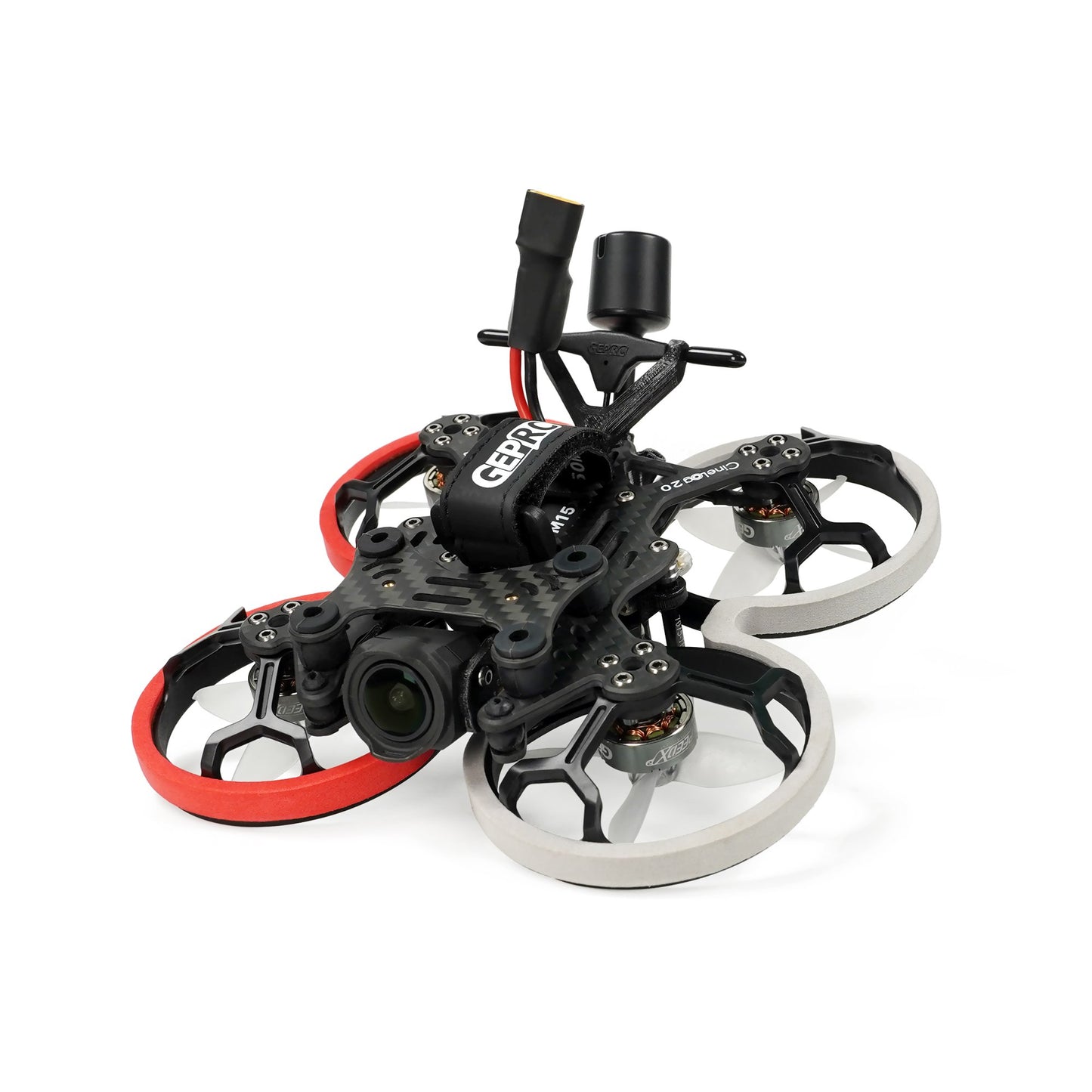

GEPRC CineLog20 HD O3

GEPRC CineLog20 HD O3

Regular price £481.00 GBP
Regular price Sale price £481.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Receiver

Out of stock

Feature

  1. Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect.

  2. Provide mainstream O3 AIR Unit Bind-N-Fly to save the trouble of building and tuning.

  3. 2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.

  4. SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.

  5. Continuing the vibration dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when flying with a Naked GoPro mounted.

  6. The GEPRC Team’s splendid tuning and the overall flight feel are delicate and flexible.

Specifications

  • Model: CineLog20 HD O3
  • Frame: GEP-CL20
  • Wheelbase: 100mm
  • Gimbal plate: 2.0mm
  • Top plate: 2.5mm
  • Bottom plate: 1.5mm
  • FC system: GEP-F411-35A AIO
  • MCU: STM32F411CEU6
  • Gyro: ICM 42688-P
  • OSD: Betaflight OSD w/AT7456E chip
  • ESC: 8Bit 35A
  • VTX: O3 AIR Unit
  • Camera: O3 Camera
  • Antenna: 5.8G&2.4G
  • Motor: GR1303.5 5500KV
  • Propeller: EMAX Avan Micro 2×2.4×4
  • CineLog20 HD O3 TBSNanoRX weight: 140g
  • Receiver: PNP(built-in DJI receiver), ELRS2.4G, TBS Nano RX
  • Recommended battery: LiHv 4S 450mah-660mah
  • Flight time: 4-6min

Includes

1 x CineLog20 HD O3

2 x 2 inch propellers (pairs)

1 x Naked GoPro Base

2 x M15*150mm battery strap

2 x Battery Silicone Pads

2 x EVA landing Pads

1 x Set of screws

1 x L-shaped screwdriver (1.5mm)

1 x Antenna fixed tube

1 x 4S Naked GoPro power cable (with balanced terminal head)

2 x EVA damping rings of guards

1 x TBS Antenna mount (Vertical Type)

1 x TBS Antenna mount (Horizontal Type)

1 x TBS Antenna printed parts

Screw package includes:

3 x M2*12mm cup head screws

2 x M2*5mm round head screws

1 x M2*8mm round head screw with pad

3 x M2*7mm round head screws

2 x M2*8mm round head screws

2 x M2 iron nuts

1 x self-clinching nut
