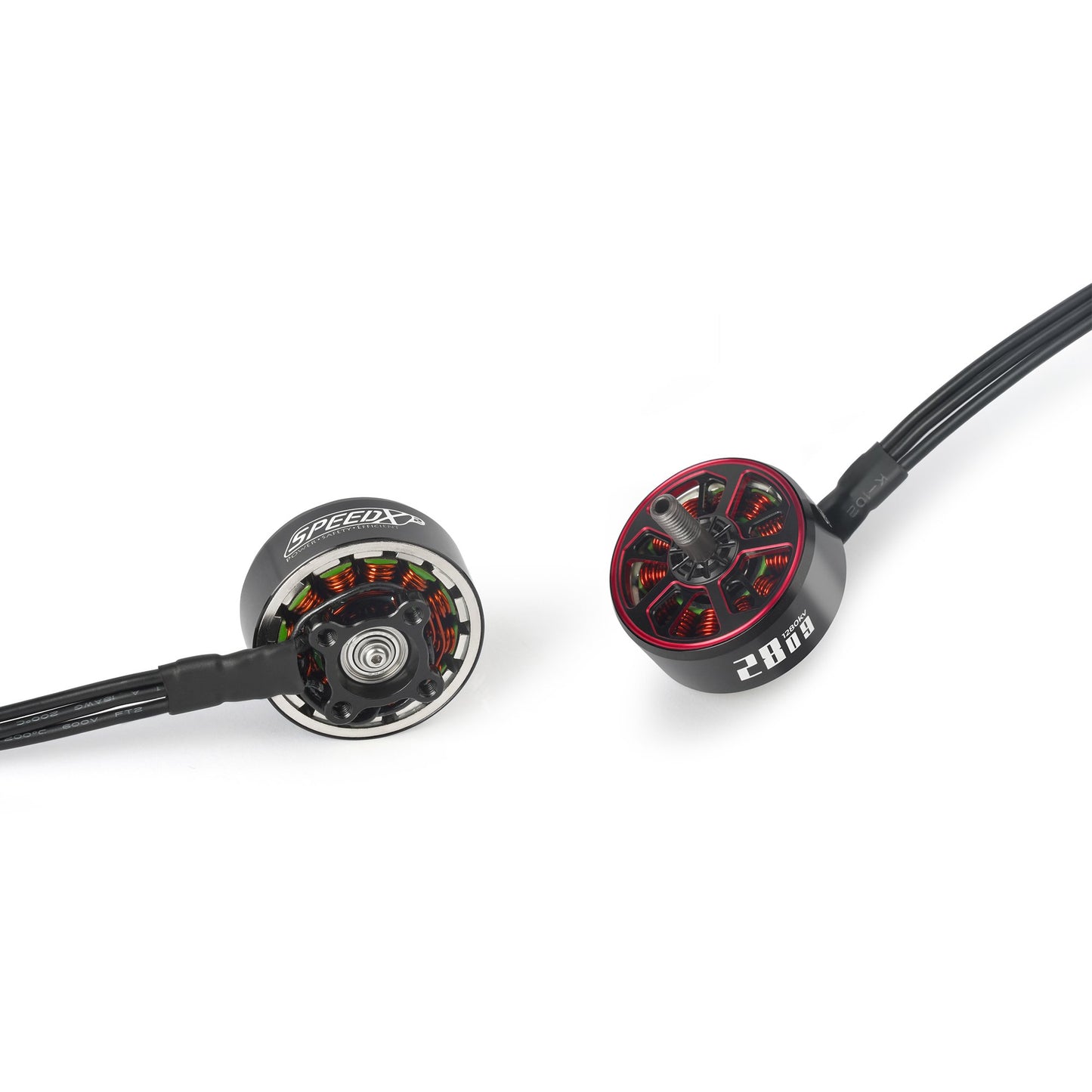

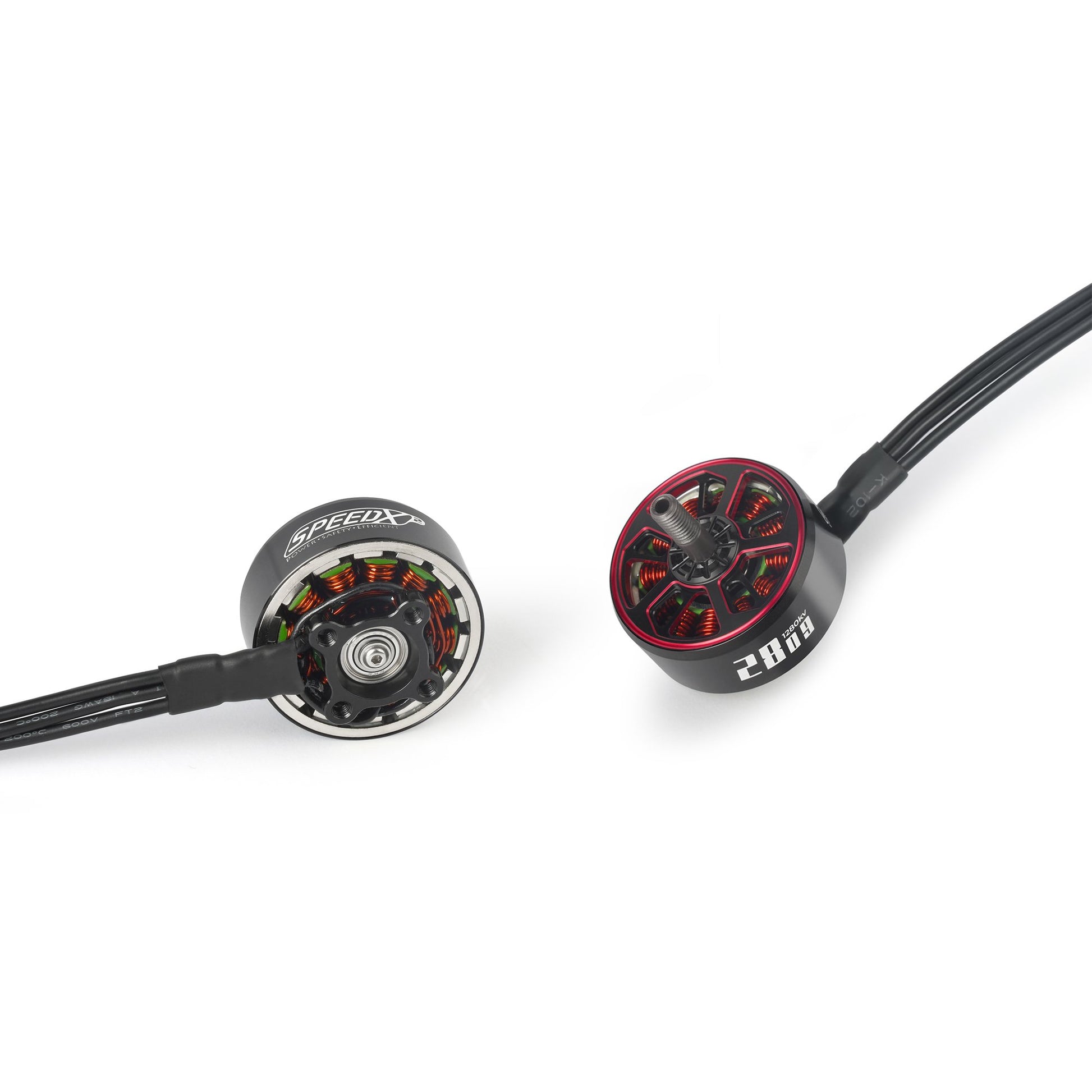

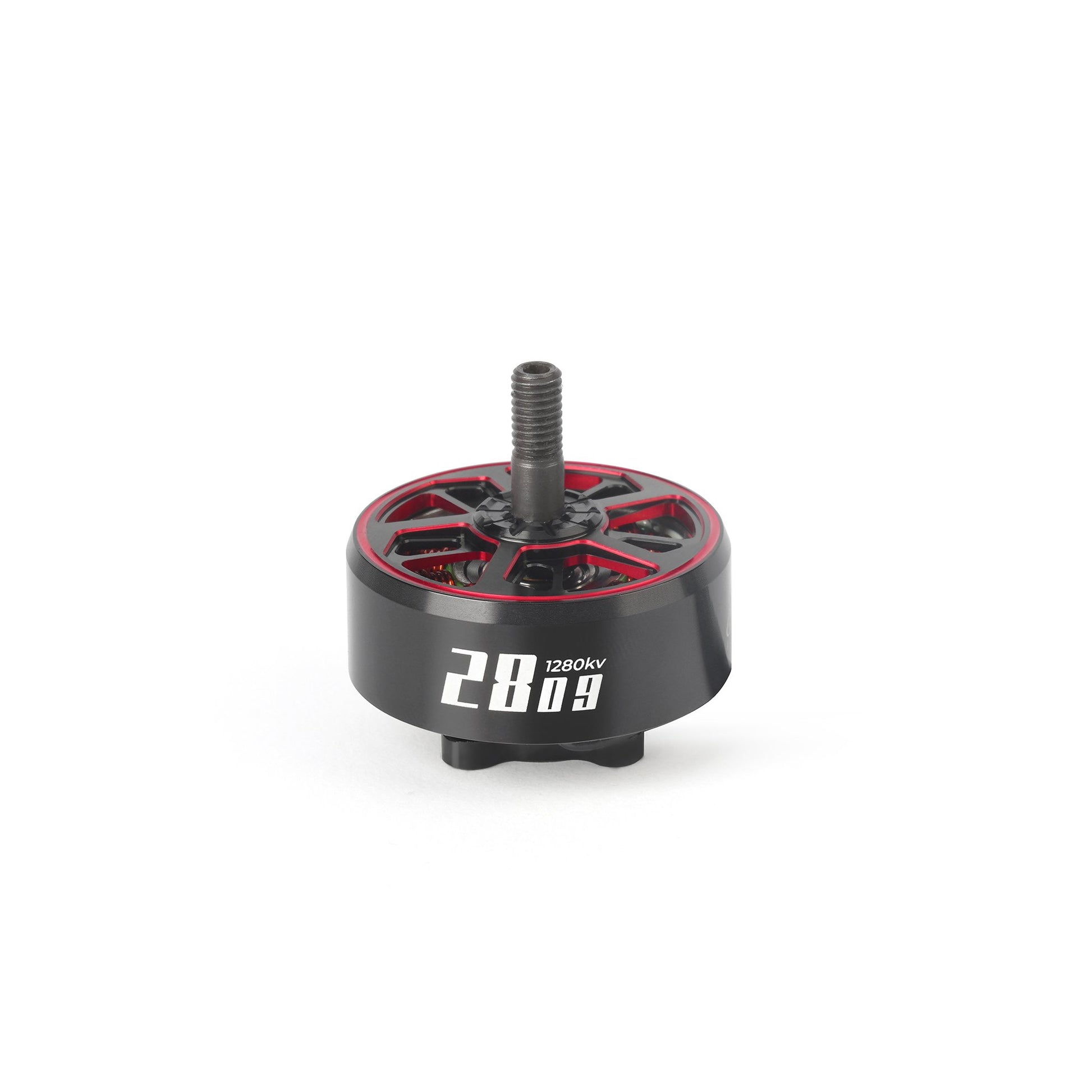

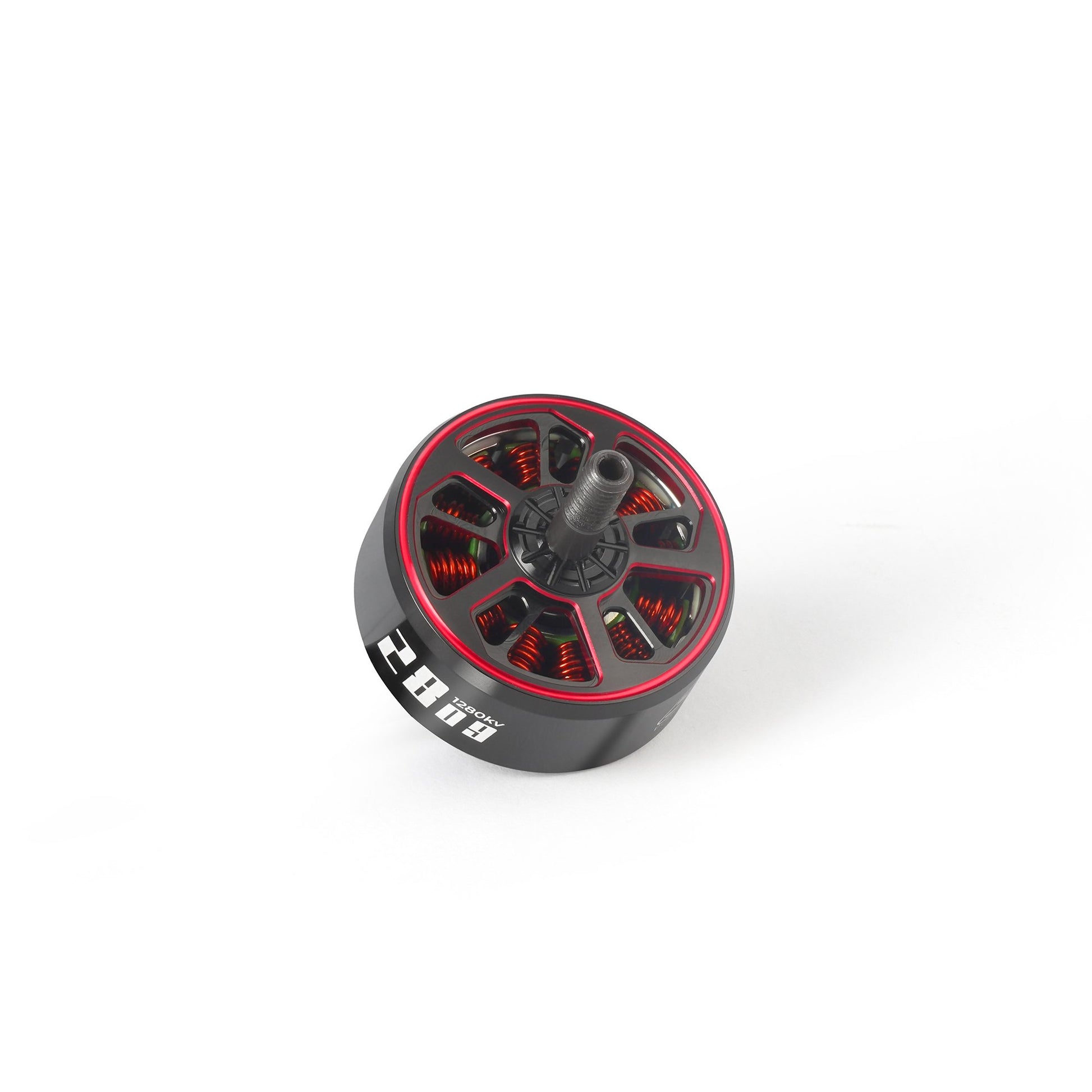

GEPRC SPEEDX2 2809 1280KV Motor

GEPRC SPEEDX2 2809 1280KV Motor

Regular price £30.00 GBP
Regular price Sale price £30.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Summary

The SPEEDX2 2809 motor is developed for a 7-8 inch large FPV drone. The stator is made of 0.2MM silicon steel sheets from Kawasaki. The magnetic steel uses N52SH, which improves the high temperature resistance by 30%. In terms of appearance, the overall design is dark and red, with a delicate texture.The motor mounting hole is 19mm*19mm.

Feature

1. Using 7075 aviation aluminum alloy, high-precision CNC integrated
2. Dark appearance with red side strips
3. The rotor edge structure conforms to the load-bearing mechanical design and has strong impact resistance.
4. Adopt high-quality N52SH magnetic steel to prevent high temperature demagnetization

Specifications

  • Model: SPEEDX2 2809 Motor
  • KV:1280KV
  • Configuration:12N14P
  • Magnet: N52SH ARC
  • Rotor material: 7075-T6 aviation aluminum alloy
  • Stator diameter: 28mm
  • Stator height: 9mm
  • Output shaft diameter: Φ5mm
  • Dimensions: Φ36.04mm * 36.53mm
  • Outlet specification: 18AWG 250mm
  • Rated voltage: 25.2V 6S(LiPo)
  • Maximum power (W): 1148.9
  • Maximum current (A): 49.35A
  • Mounting hole: 19x19mm (M3)
  • Color: red and black
  • Weight: 71.4g
  • Applicable models: 7-8 inch long range FPV/7-8 inch X8 models

Includes

1 x SPEEDX2 2809 1280KV motor
4 x M3*9 round head screws
1 x M5 anti-slip nut
