Brand Name: Happymodel
Mode: SE0702 KV26000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm

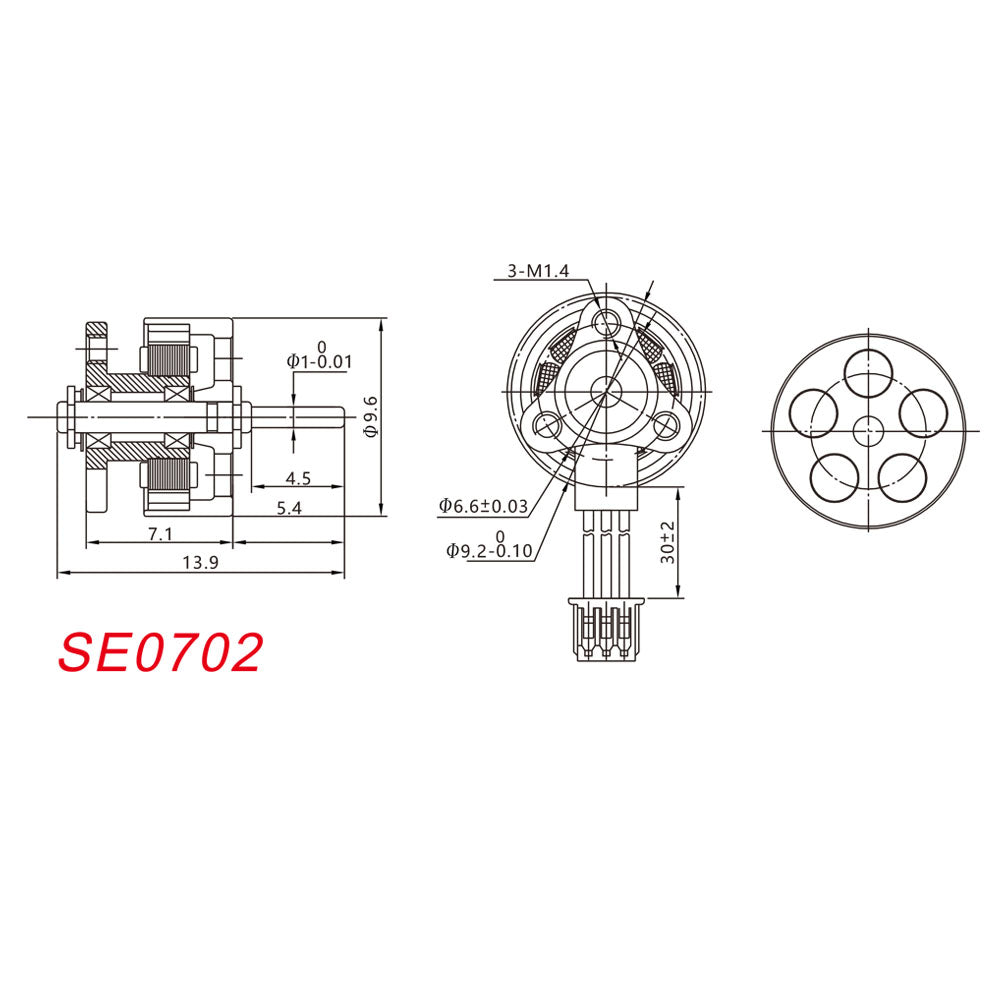

Motor Dimension(Dia.*Len):Φ9.5mm*14mm

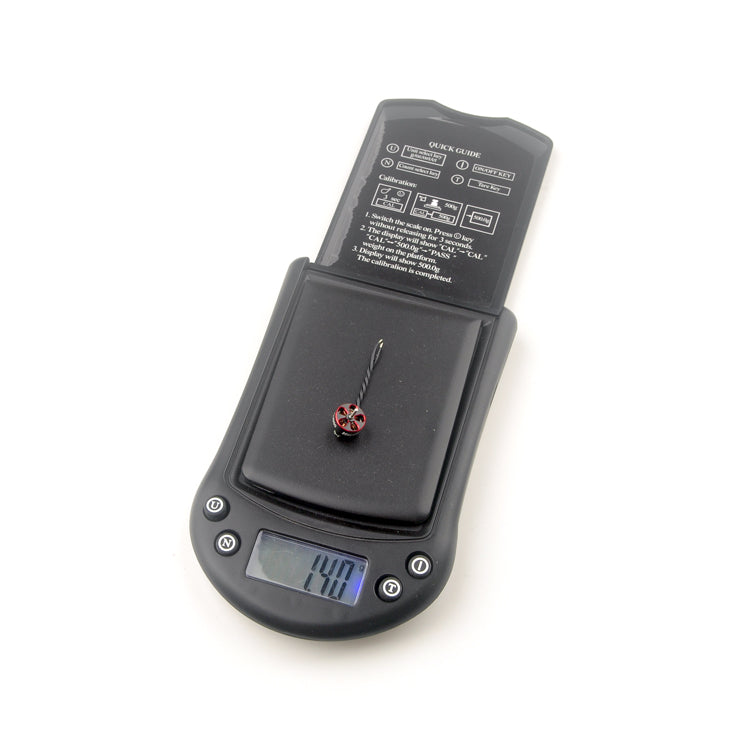

Weight(g):1.46g
No.of Cells(Lipo):1S only
| Happymodel SE0702 Brushless motor Bench data | ||||||||||
| No-load voltage | No-load current |
No-load Speed | KV | Voltage (v) |
Current (A) |
Thrust (g) |
Efficiency (g/w) |
Power (w) |
Propeller | |
| Happymodel SE0702 KV26000 | ||||||||||
| 2 | 0.35 | 51070 | 25535.0 | 3.7 | 0.98 | 8 | 2.206 | 3.626 | HQPROP 31MM Bi-blade propeller |
|
| 3.7 | 1.49 | 11.9 | 2.159 | 5.513 | ||||||
| 3.7 | 1.99 | 15.6 | 2.119 | 7.363 | ||||||
| 3.7 | 2.5 | 19.6 | 2.119 | 9.25 | ||||||
| 3.7 | 2.8 | 21.7 | 2.095 | 10.36 | ||||||
