Diatone

MAMBA F405MK2 V2 / F55 BLS Stack 30MM/M3 (MPU6000)

MAMBA F405MK2 V2 / F55 BLS Stack 30MM/M3 (MPU6000)

Regular price 1.050,00kr SEK
Regular price Sale price 1.050,00kr SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

About this product

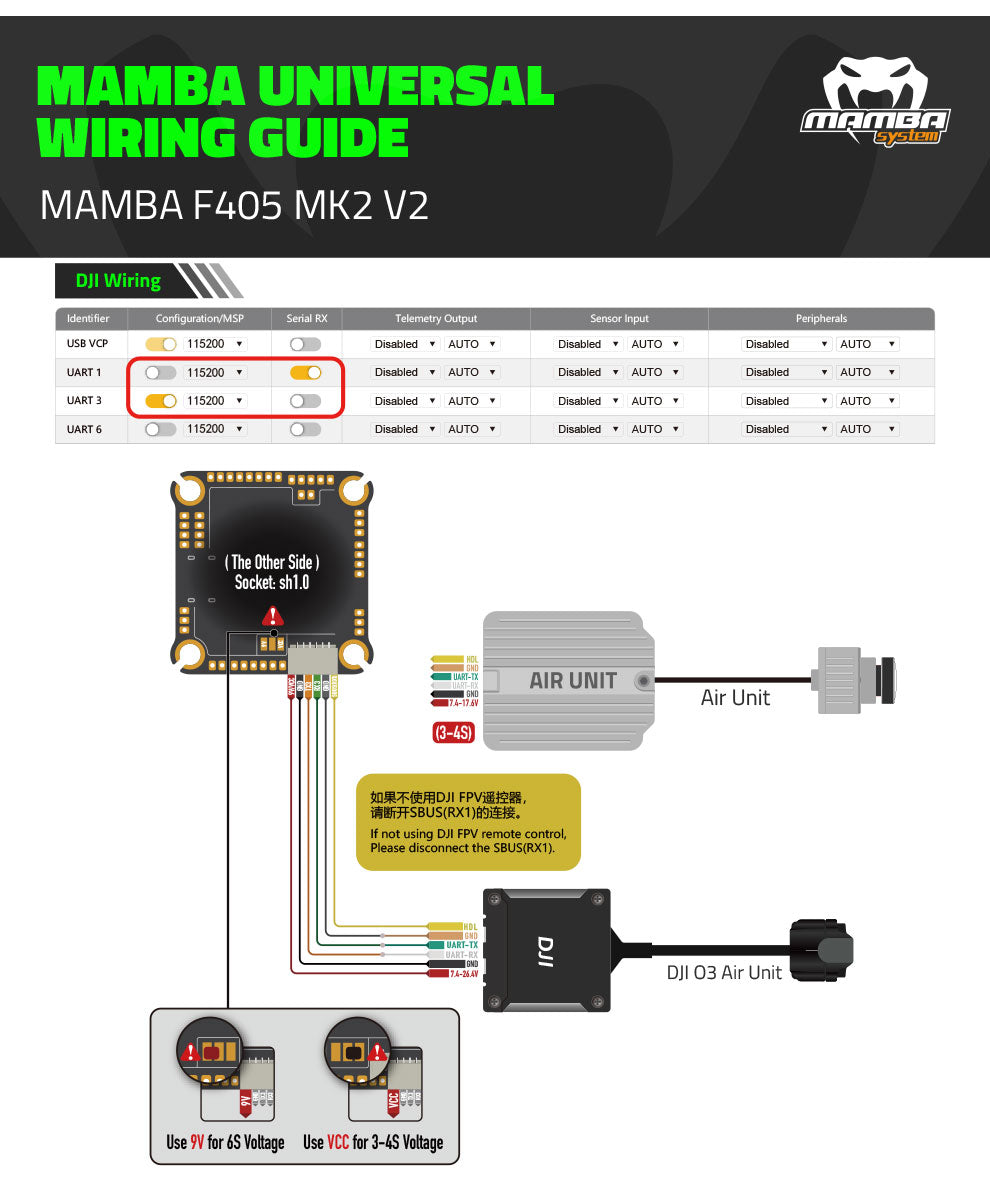

The Diatone Mamba DJI F405 MK2 FC 55A Stack brings BIG power all in a 30.5x30.5 mounting size! This stack can push 55A all while bringing you the latest features. The built-in plugin allows you to easily connect to the DJI FPV Air System.

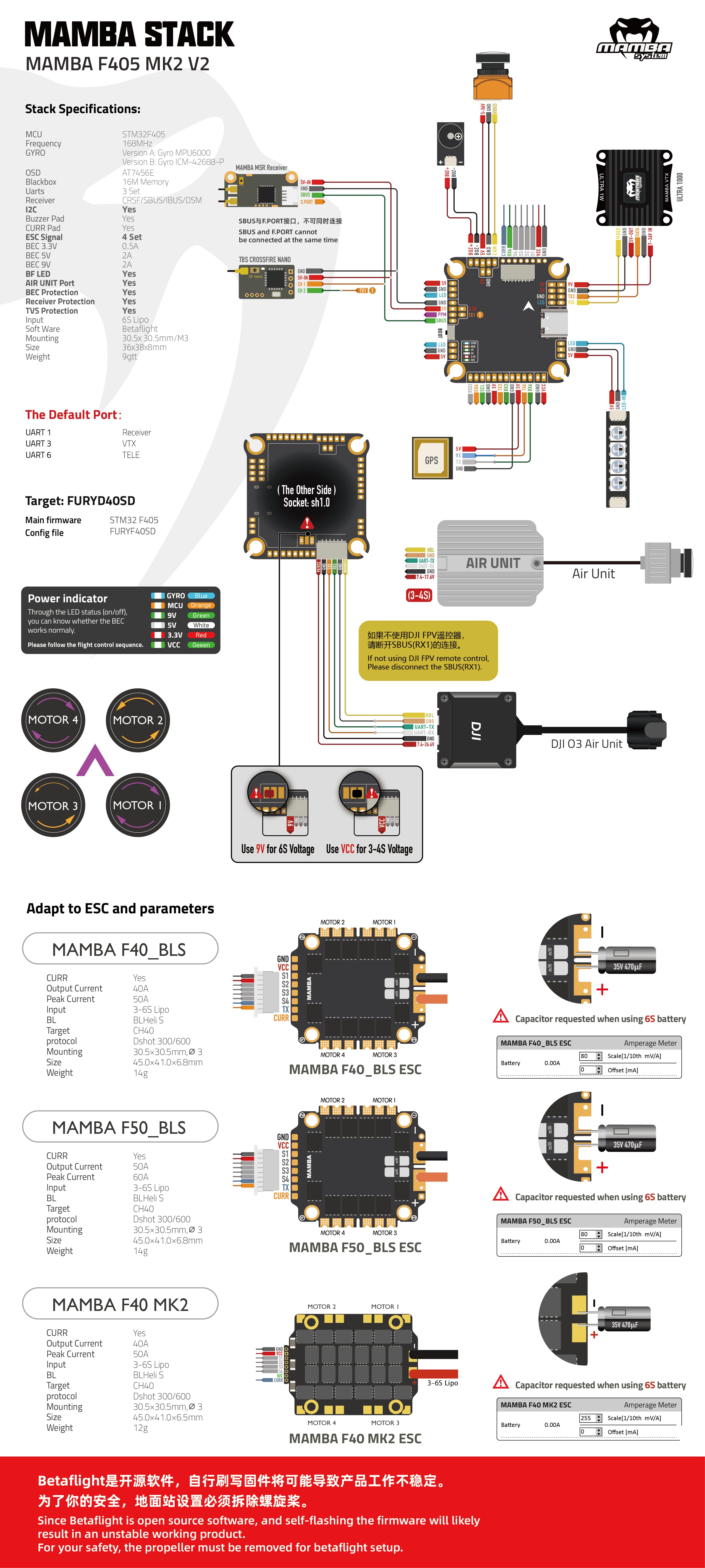

Specifications

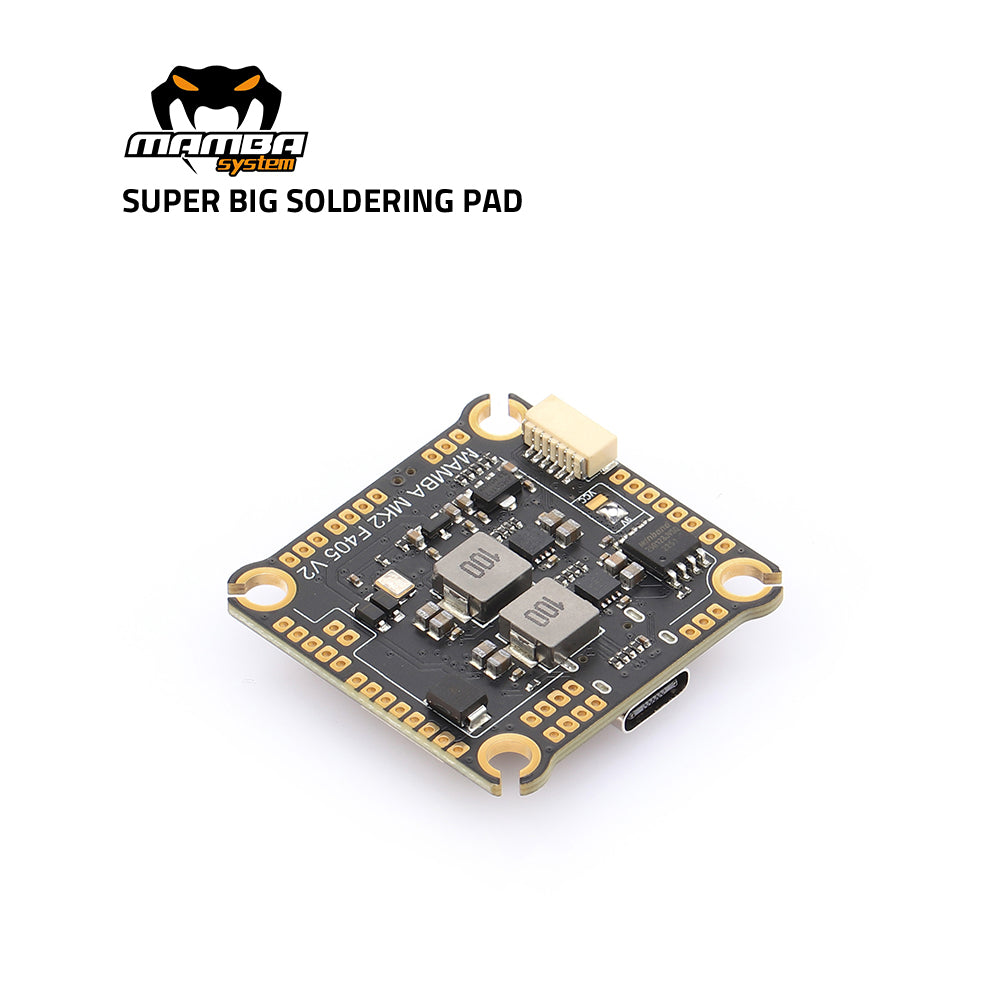

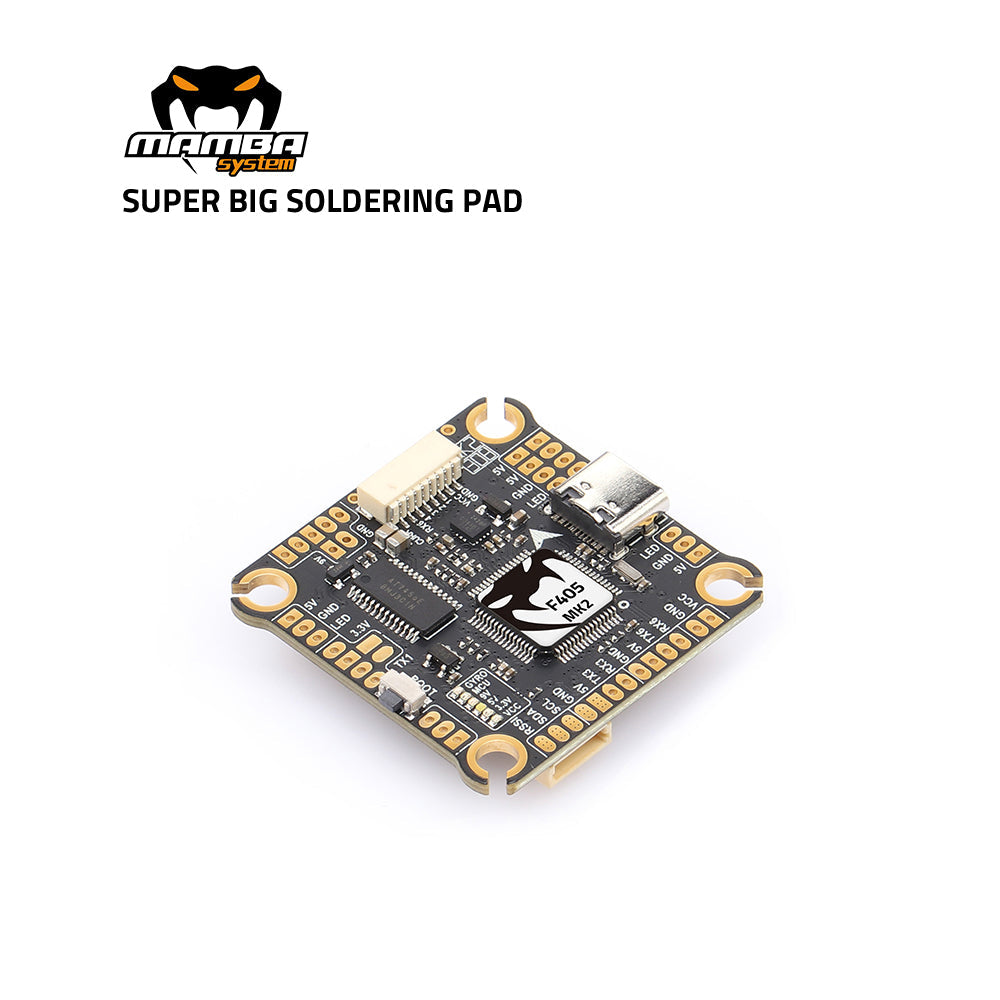

MAMBA DJI F405 MK2

  • LED Controller: BF LED/MB LED (4 Set 2812 LED)

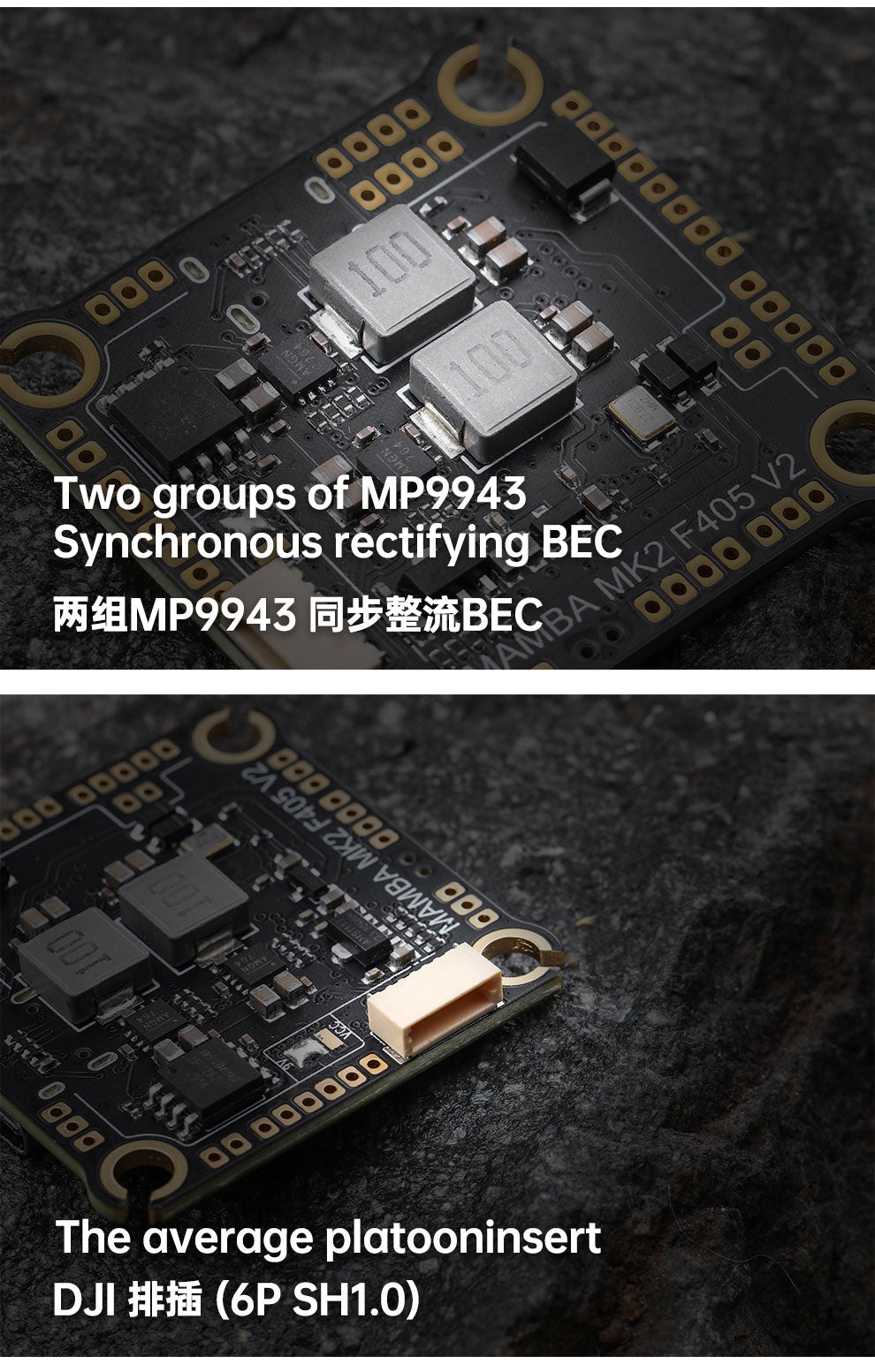

  • BEC:3.3V 0.5A& 5V 3A & (DJI) 9V 3A
  • MCU: 168MHz STM32F405RGT6
  • Input: 3~6S Lipo (12.6~25.2V)
  • ESC Soft: Dshot300/600/1200
  • Blackbox: 16M Flash Memory
  • MOUNTING: 30.5mm,M3
  • TVS Protection: Yes
  • ESC Telemetry: Yes

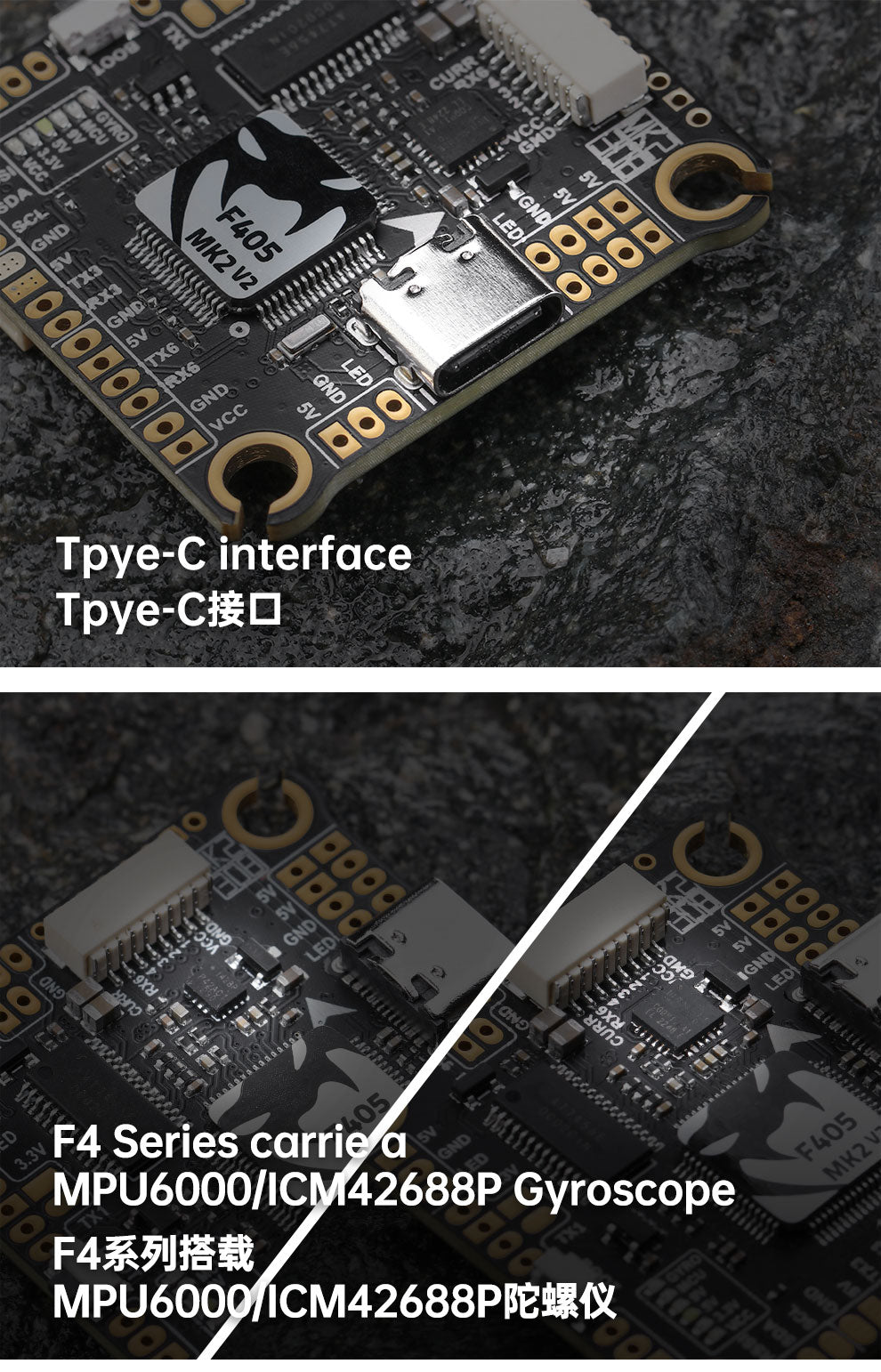

  • IMU: MPU6000
  • Power Led: Yes
  • Barometer: Yes
  • Uarts: 6Set
  • F.Port: Yes
  • RSSI: Yes
  • Buzz: Yes
  • OSD: Yes

DIATONE MAMBA F55 55A 128K ESC

  • Target:BLHeli_32 MAMBA F55_128K
  • Input Voltage: 3~6S Lipo 12.6-25.2V
  • Mounting Pattern: 30.5mm/M3
  • Protocol: Dshot300/600/1200
  • Continuous Current: 55A×4
  • Burst Current: 65A (10S)
  • BLHeli: BLHeli_Suite32
  • TVS Protection: Yes
  • PWM:24~128K
  • BEC: No

Includes

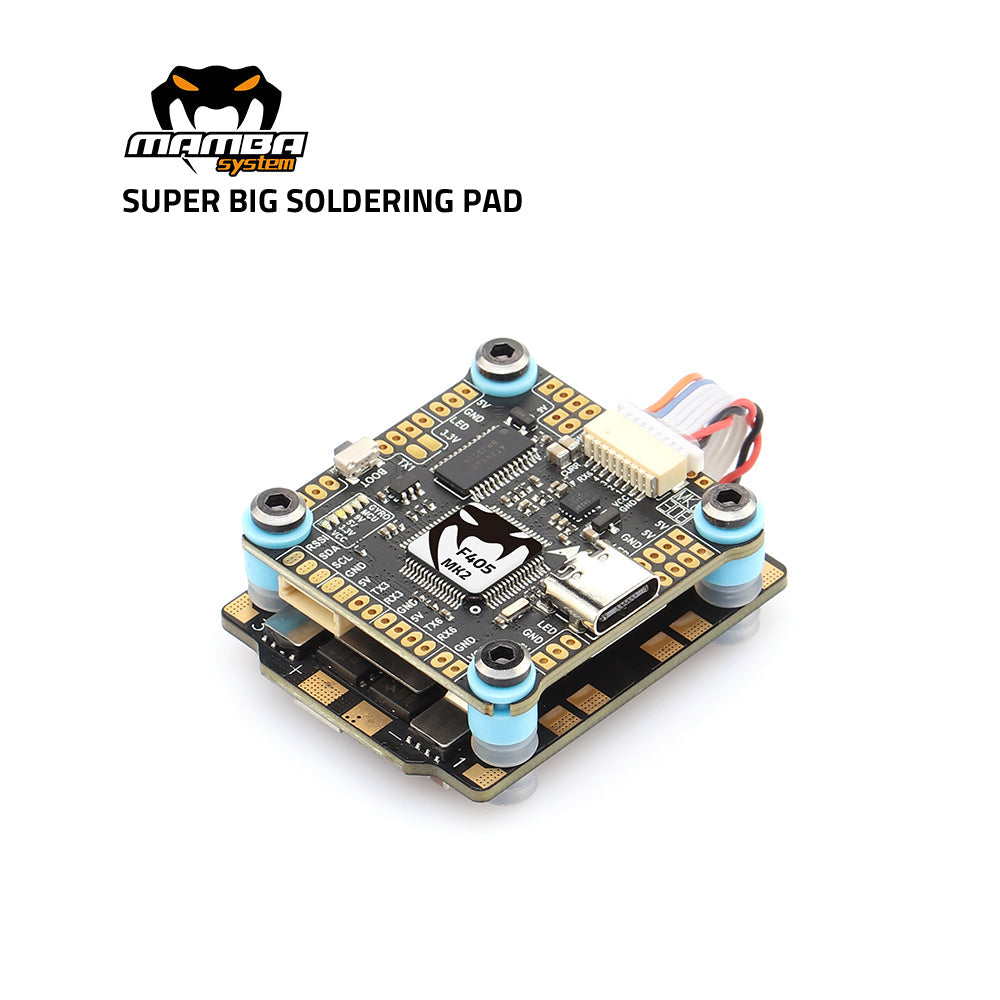

  • 1x Diatone Mamba Stack - DJI F405 MK2 FC + F55 55A BLS ESC
  • 1x AMASS Original XT60
  • 2x 12AWG 100mm Cable
  • 1x Mounting Adapter
  • 60x Hard Dampers
  • 40x Soft Dampers
  • 1x Hardware Kit
  • 2x 8pin sh1.0
  • 1x Capacitor
  • 1x DJI 8 Pin
