Nordfpv Nord 5 HD Frame

Nordfpv Nord 5 HD Frame

Regular price 823,00kr SEK
Regular price Sale price 823,00kr SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
3D Printed parts

In stock

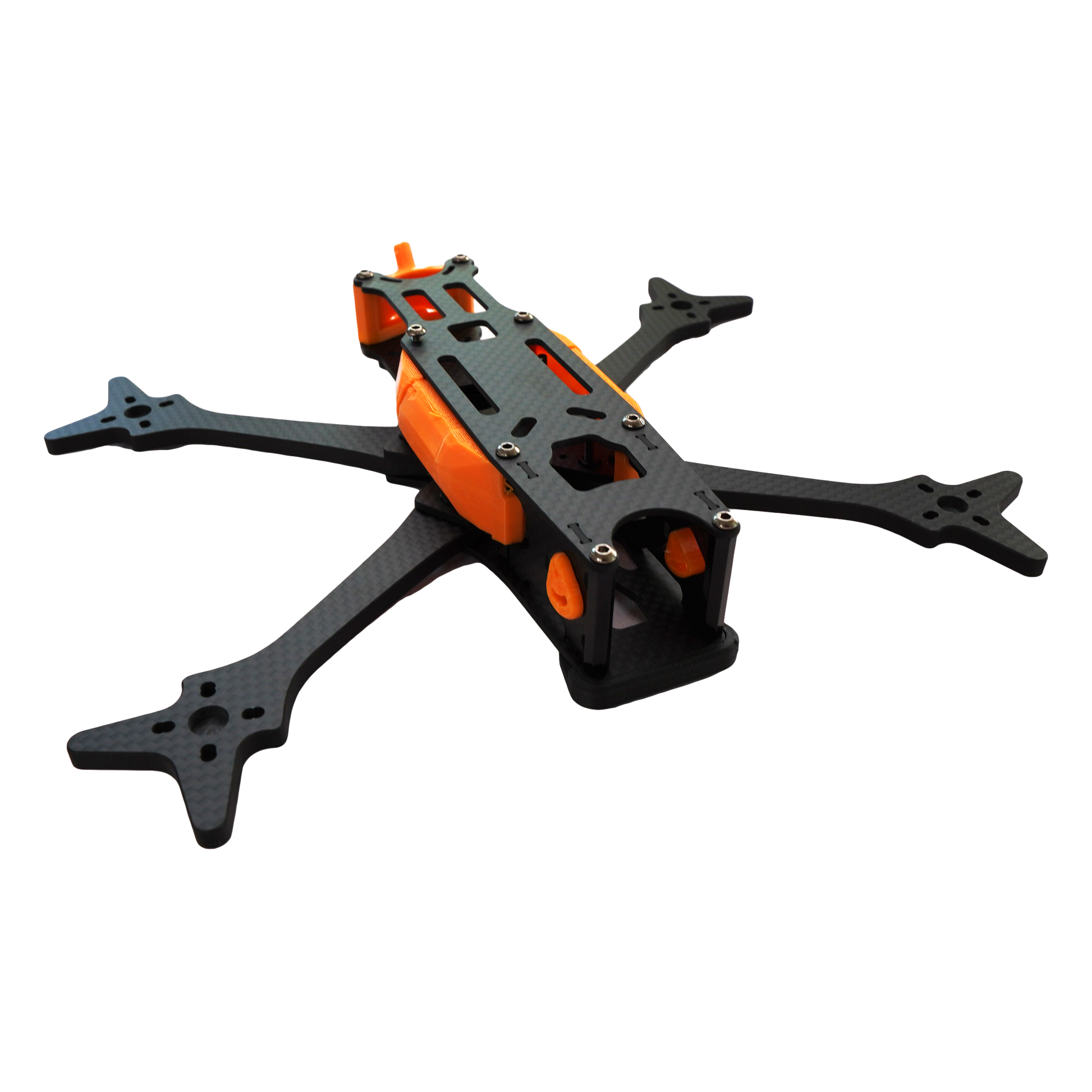

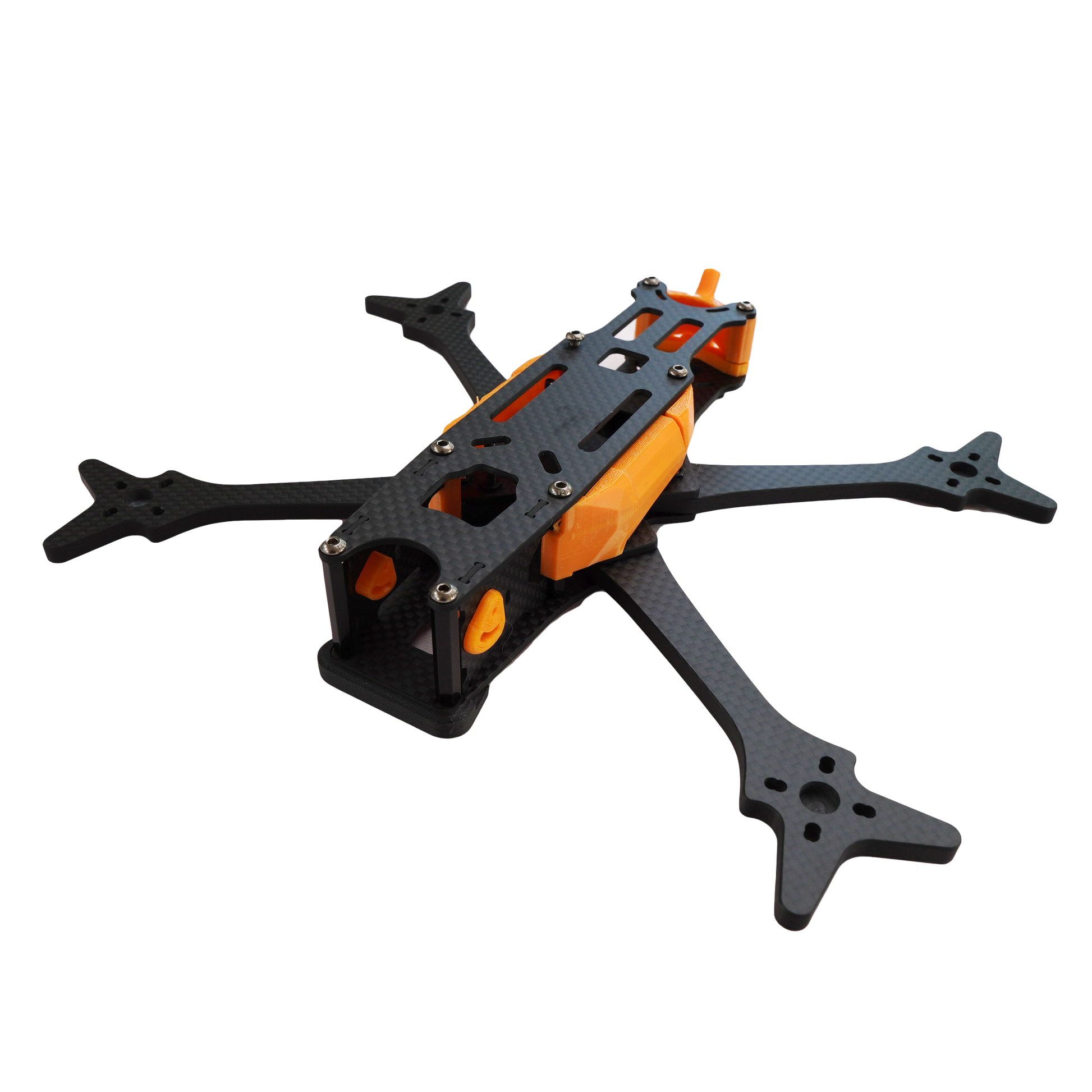

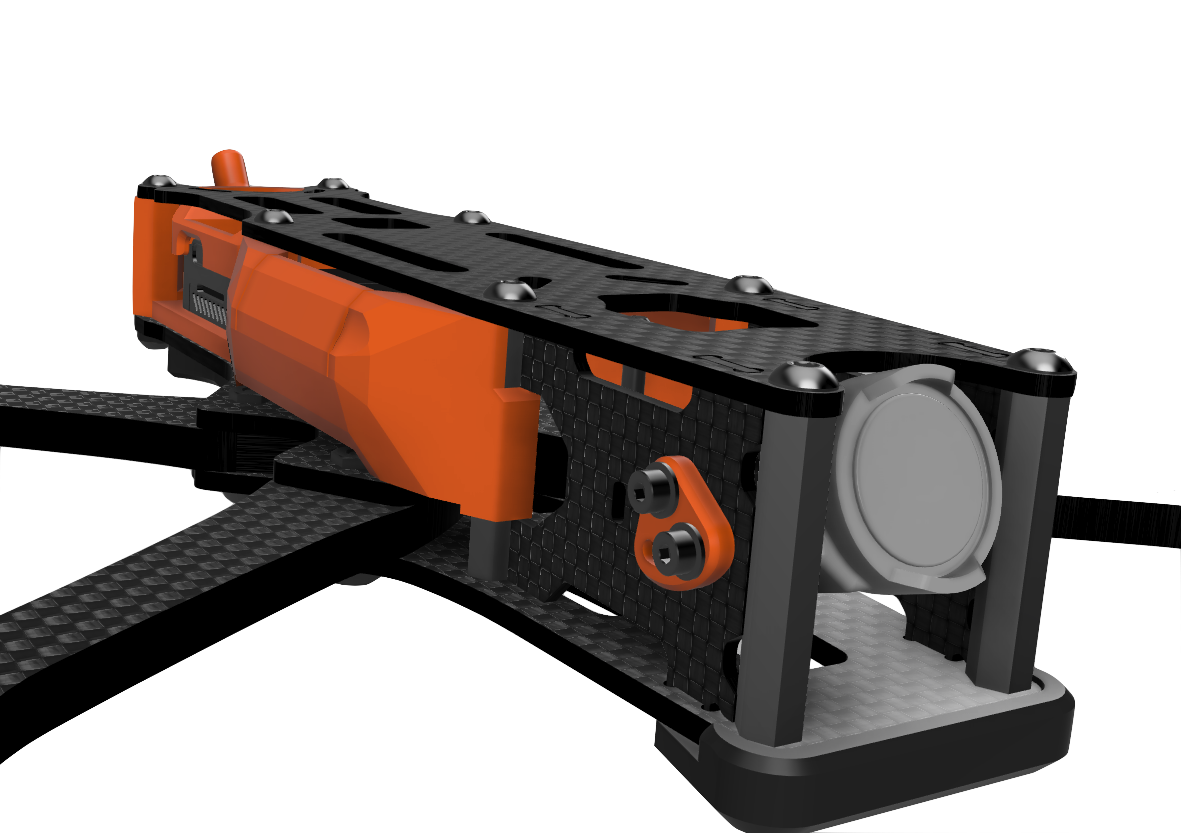

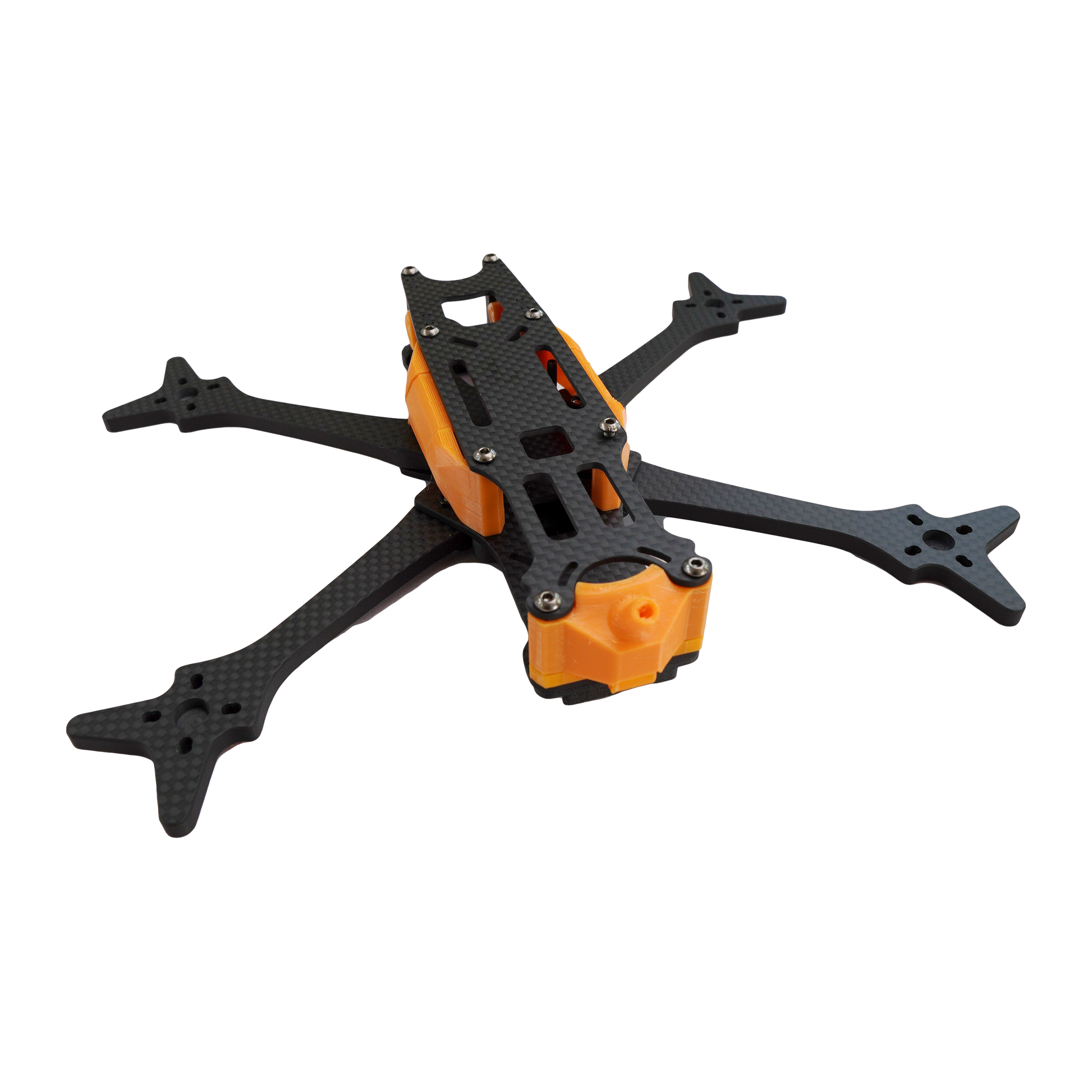

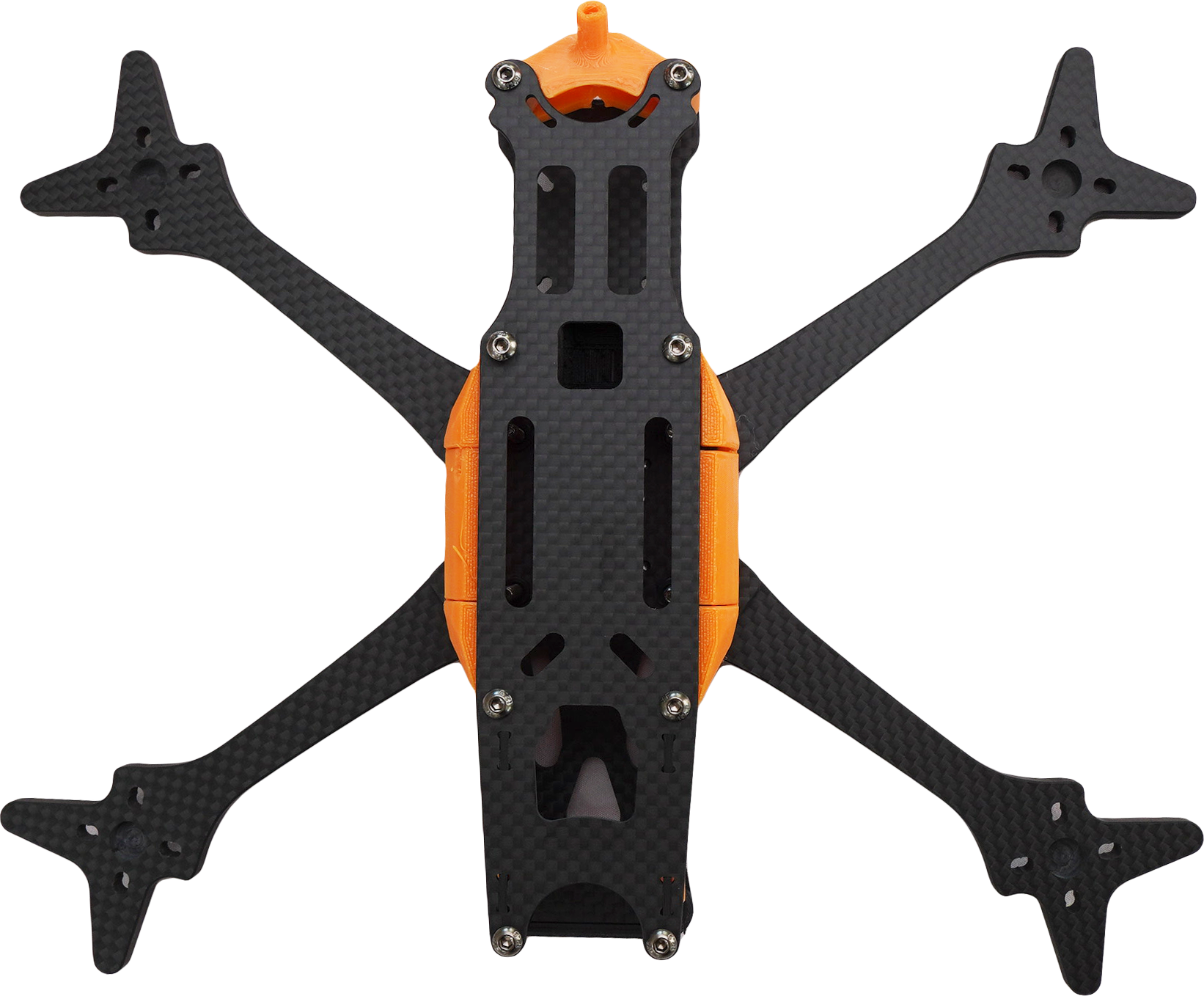

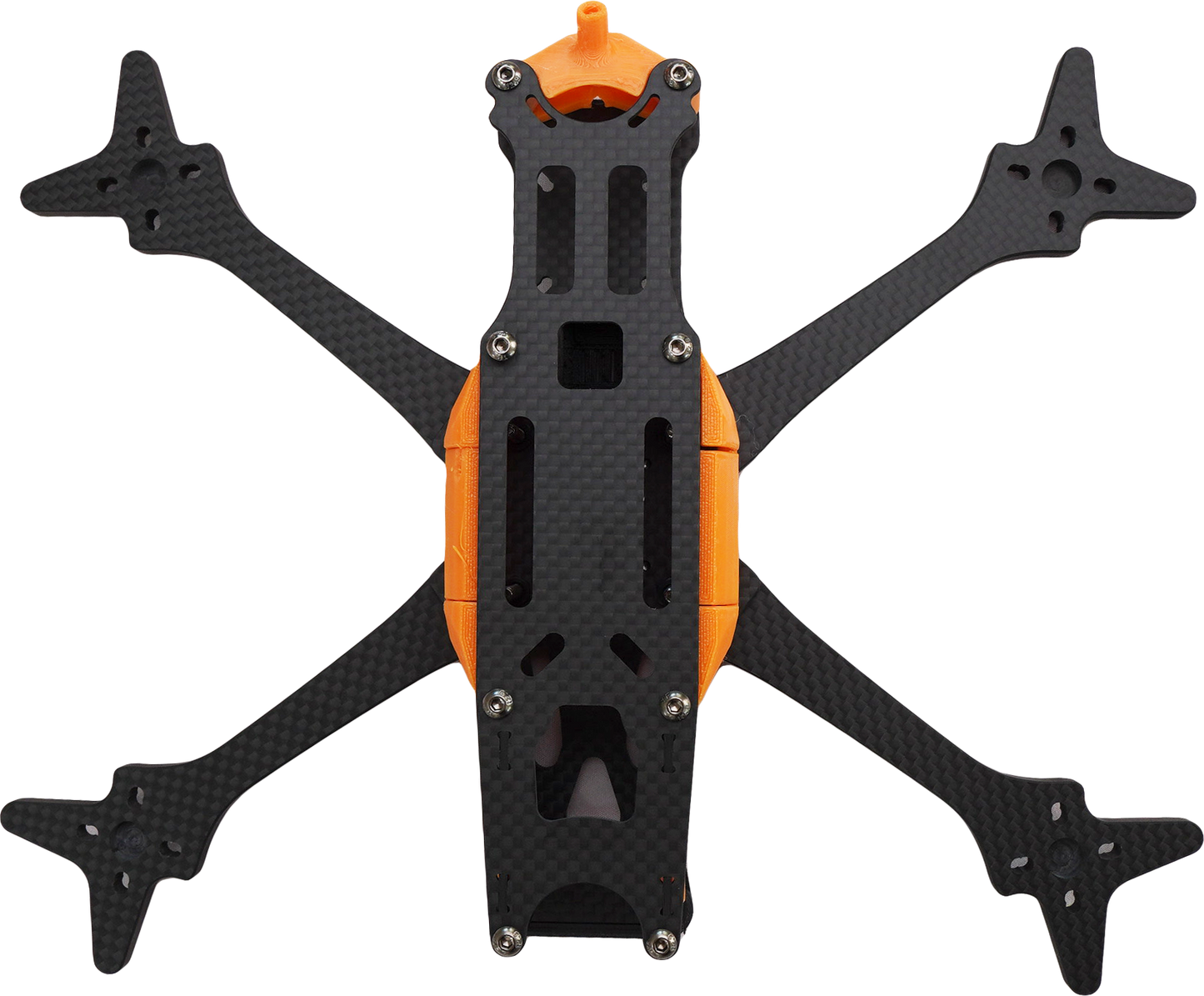

This 5" frame, designed by Olof Ogland, and brought to the market by Nordfpv, tries to achieve perfect flying by improving on already proved features, and adding value creating special spaces for cable management and flexible part placement.

More info: https://nordfpv.com/pages/nordfpv-nord5-hd-frame



FEATURES:

.-Squished X geometry

.-Motor to motor: 230mm

.-5.5 mm thick arms

.-2mm top plate

.-2.5mm bottom plate

.-Space for 20x20 or 30x30 stacks

.-Place for Vista, Air Unit, or Walksnail VTX on the back

(the mount holes are flexible and should accept analog VTX, but hasn't been tested)

.-Space for 19-20mm cameras

.-16x16 and 19x19 M3 thread motor mount pattern

.-Support for 5" and 5.1" propeller

.-Weight: 147 gr (frame and basic necessary components)



INCLUDED IN THE PACKAGE:

.-Frame

.-Battery strap

.-Battery pad

.-Fiber reinforced nylon 3D printed parts

.-TPU 3D printed part to cover the stack and camera rubbers

.-TPU 3D printed part for the VTX antenna (vista vs Air unit/Walksnail options)

.-Building screws, including stack and motors



3D Printed parts per selection:

Vista Walksnail Air Unit
3D parts for Walksnail selection 3D parts for Air Unit Selection



Printed part can also be downloaded from Printables

Here's a dummy step with geometry if you want to design your own 3D parts
