Walksnail

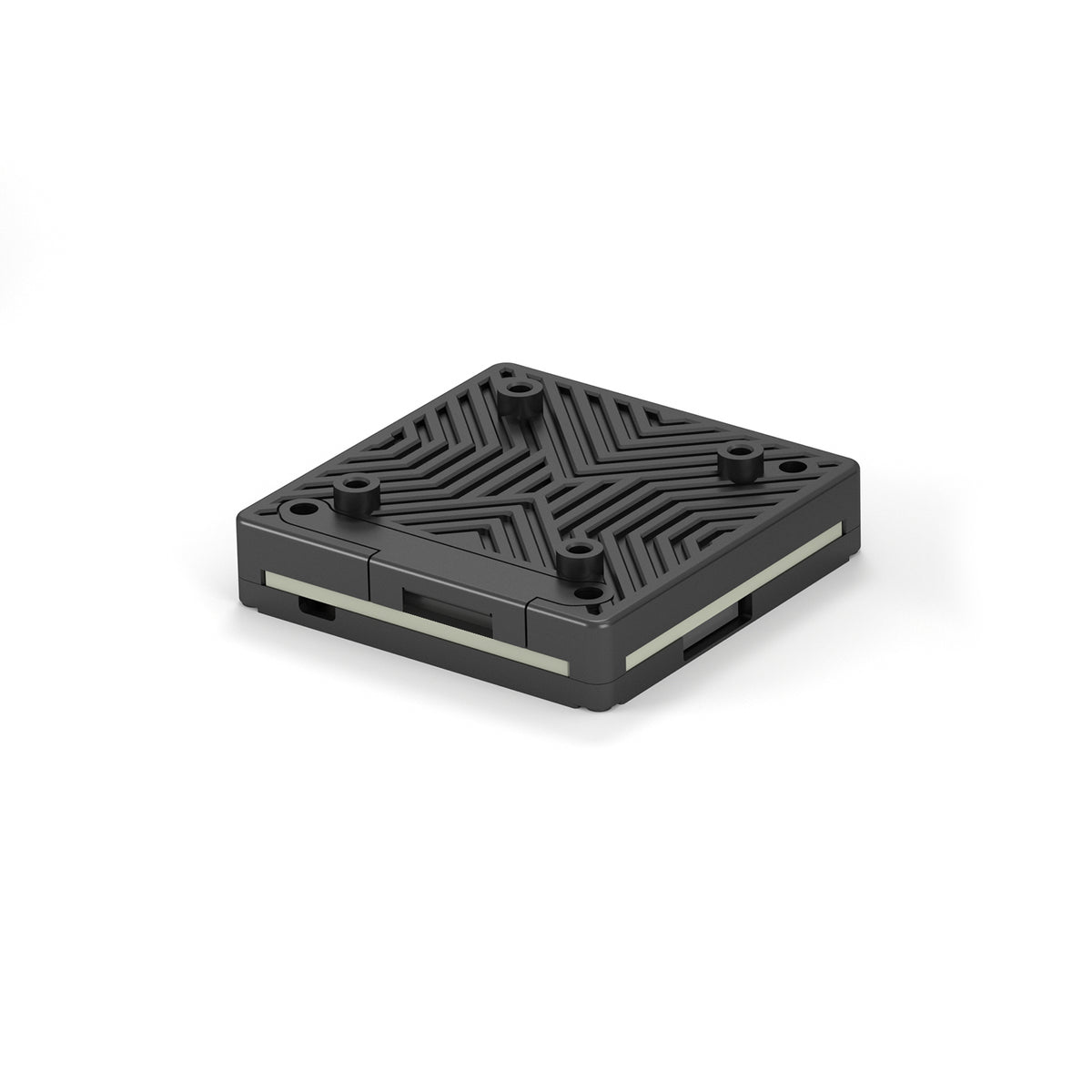

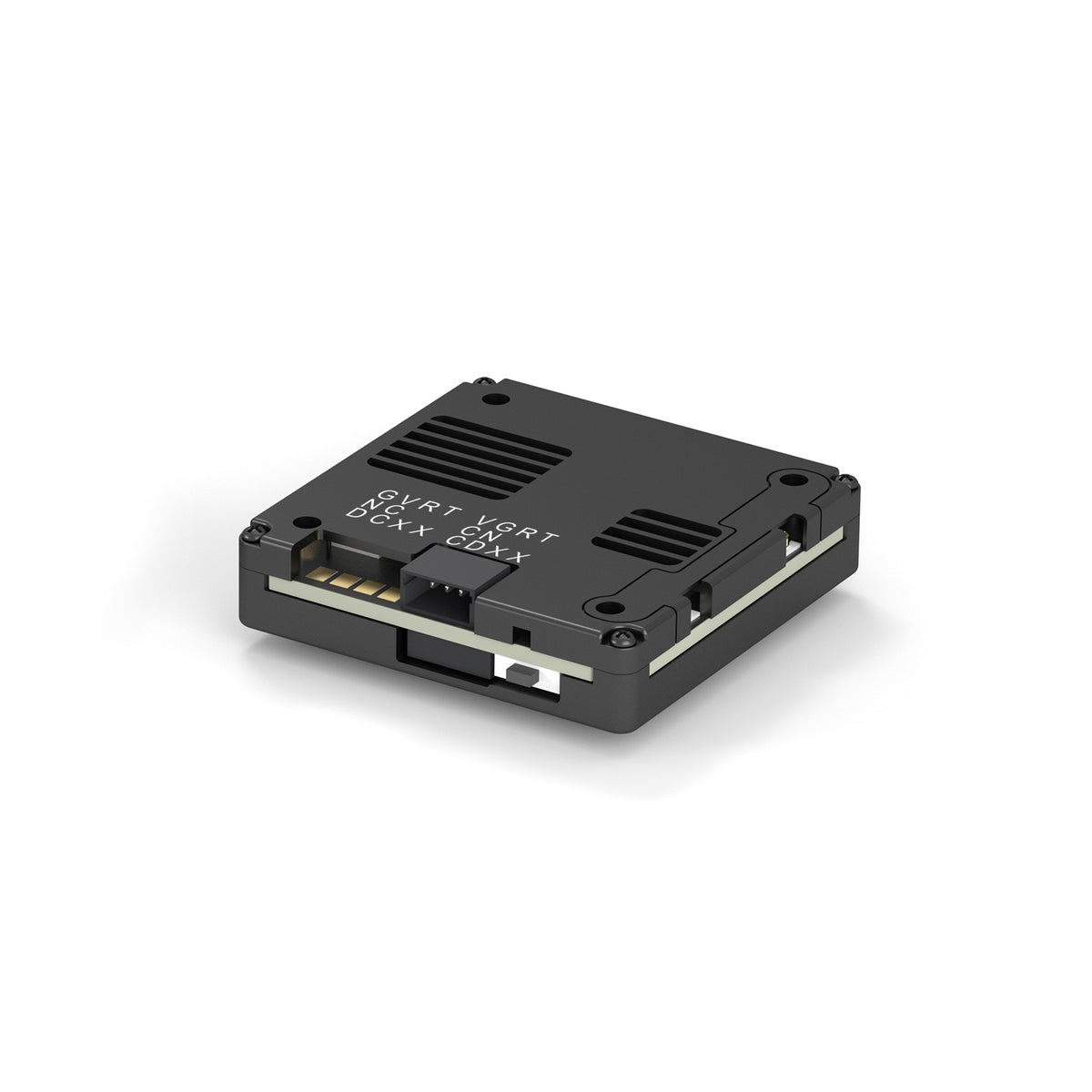

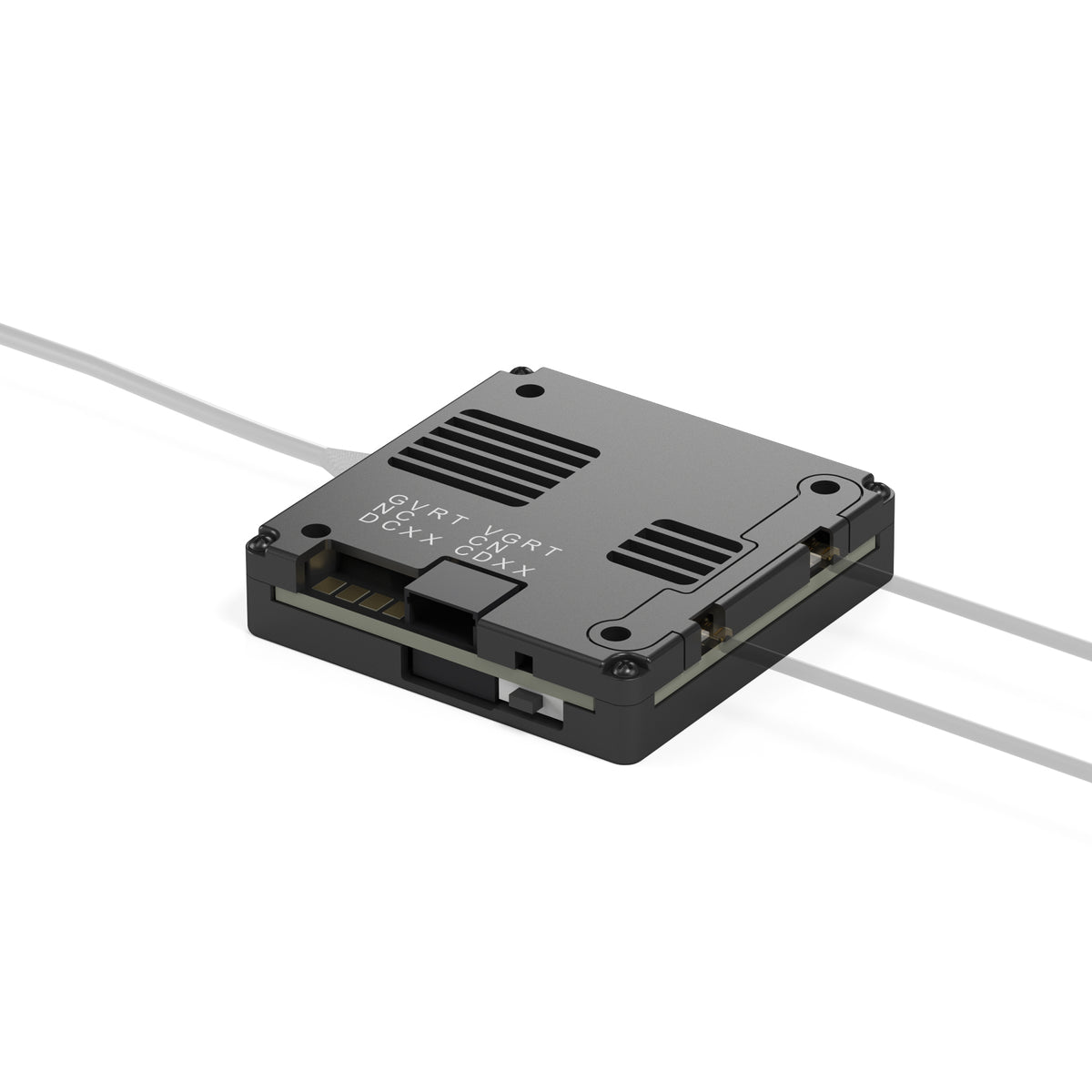

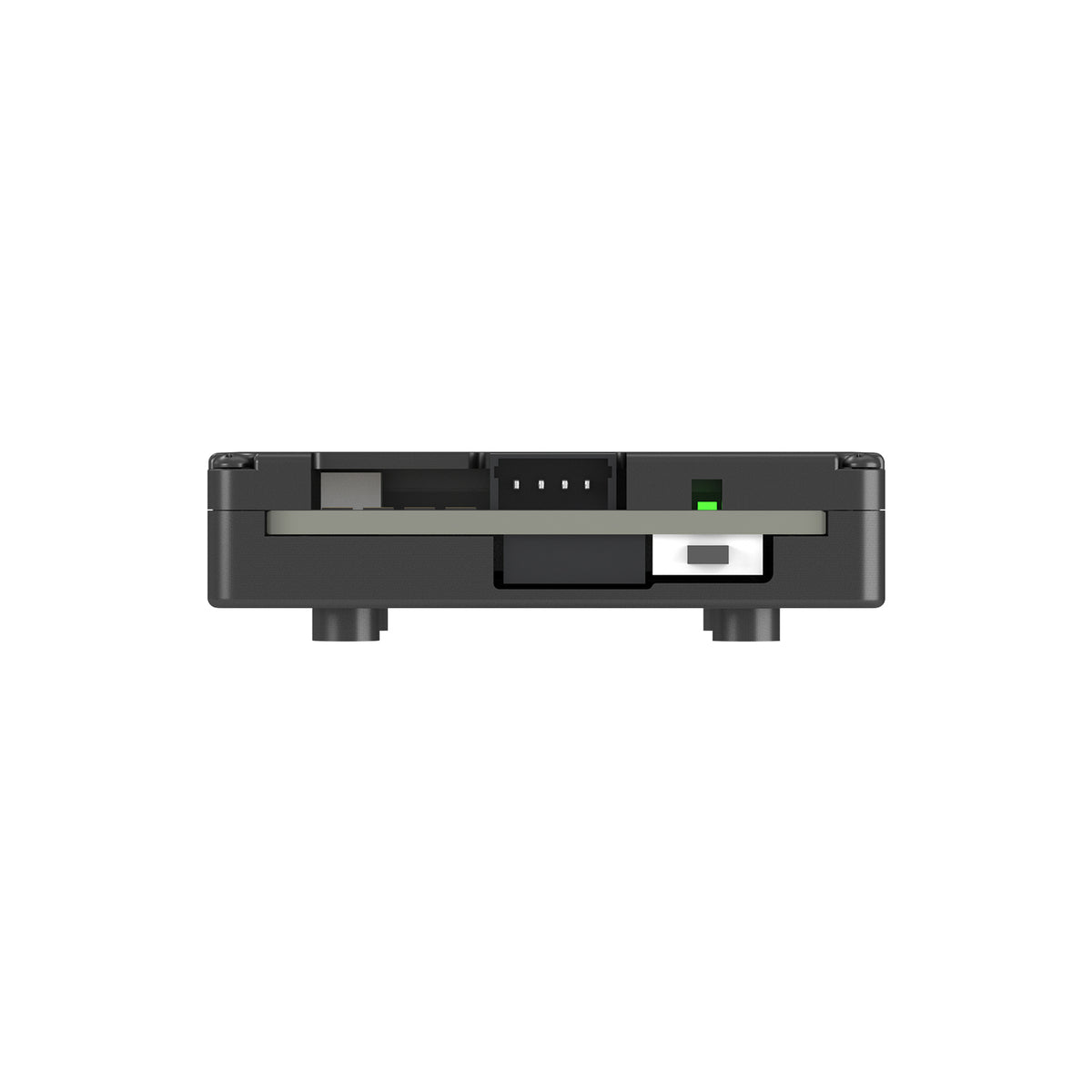

Walksnail Avatar HD VTX V2 32G Module (Dual Antennas Version)

Walksnail Avatar HD VTX V2 32G Module (Dual Antennas Version)

1.812,00kr SEK
1.812,00kr SEK
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Bullet Points：

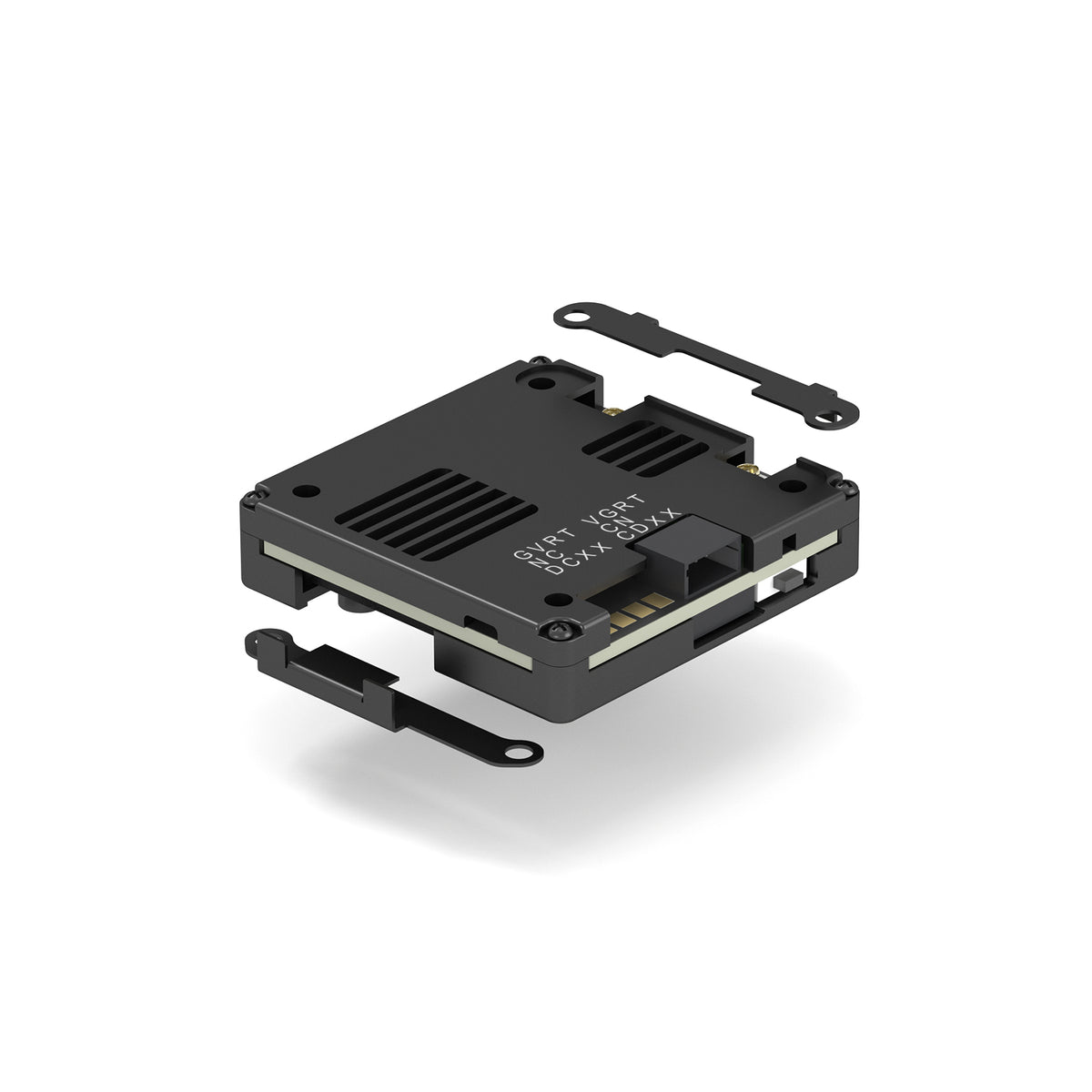

  • The kit includes 20mm x 20mm and 25mm x 25mm mounting holes for greater compatibility with a wider range of FPV drone models.
  • Updated the design of PCB board and shell, improved the quality of VTX, more durable.
  • Optimized the installation place of the antenna, it's better to protect the VTX.
  • The position of the frequency binding button has been changed, to make the frequency binding operation more convenient.
  • The kit includes a spare power pad, providing an extra opportunity for welding.
  • The Avatar VTX comes with 32g built-in storage it can record 1080P or 720P HD fly videos without interference. 32G built-in storage, recording video time increased by 4 times.

  • New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
Specification
VTX
Model Avatar V2 module(Dual Antenna)
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
1/O Interface JST1.0*4(Power in)JST0.8*6(USB)
Mounting Holes 25.5*25.5mm; 20*20mm
Dimensions 33*33*10.5mm
Storage 32G
Recording 1080P/720P
Weight 15.4g
Operating Temperature -20-40℃
Channels 8
Wide Power Input 6V-25.2V
Supported FC System Betaflight; Inav; Fettec; ArduPilot;Kiss;
OSD Canvas mode
Latency Average delay 22ms
Antenna 2(IPEX)
